AL1200P25TK

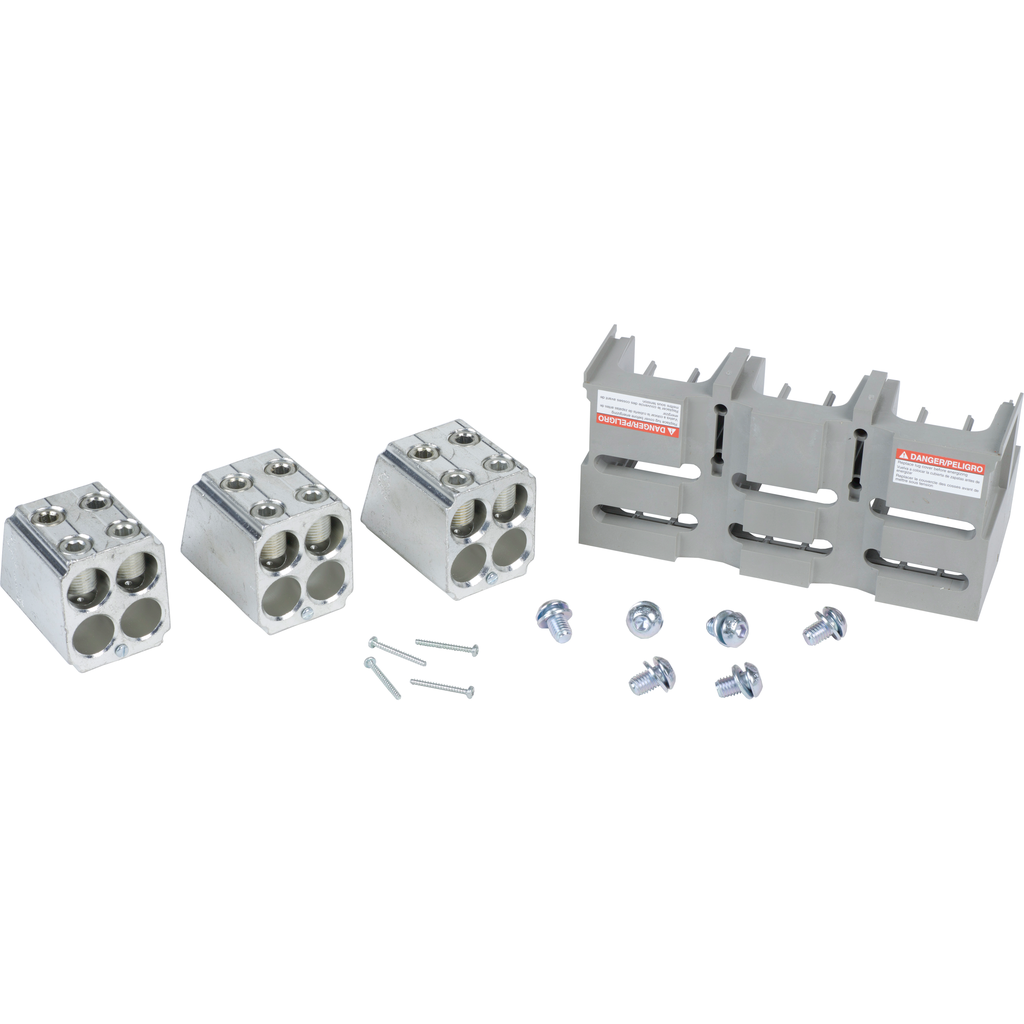

Connector accessory, PowerPacT P, circuit breakers, 1200A, 3/0 to 500kcmil, mechanical lug kit, Al, tapped
Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. This connector accessory is designed to be used with PowerPact P-frame circuit breakers or molded case switches with Electronic trip units with sensor rating up to 1200A. Terminal wire range for this accessory is (3) 3/0 AWG - 500 kcmil aluminium or copper Connector accessory is coming with tapped hole for control wire, 3 lugs per kit
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type | standard |
|---|---|
| Warranty | 18 months |
| Tightening Torque | 1-1.3 N.m |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Environmental Disclosure | ENVPEP1406032EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
