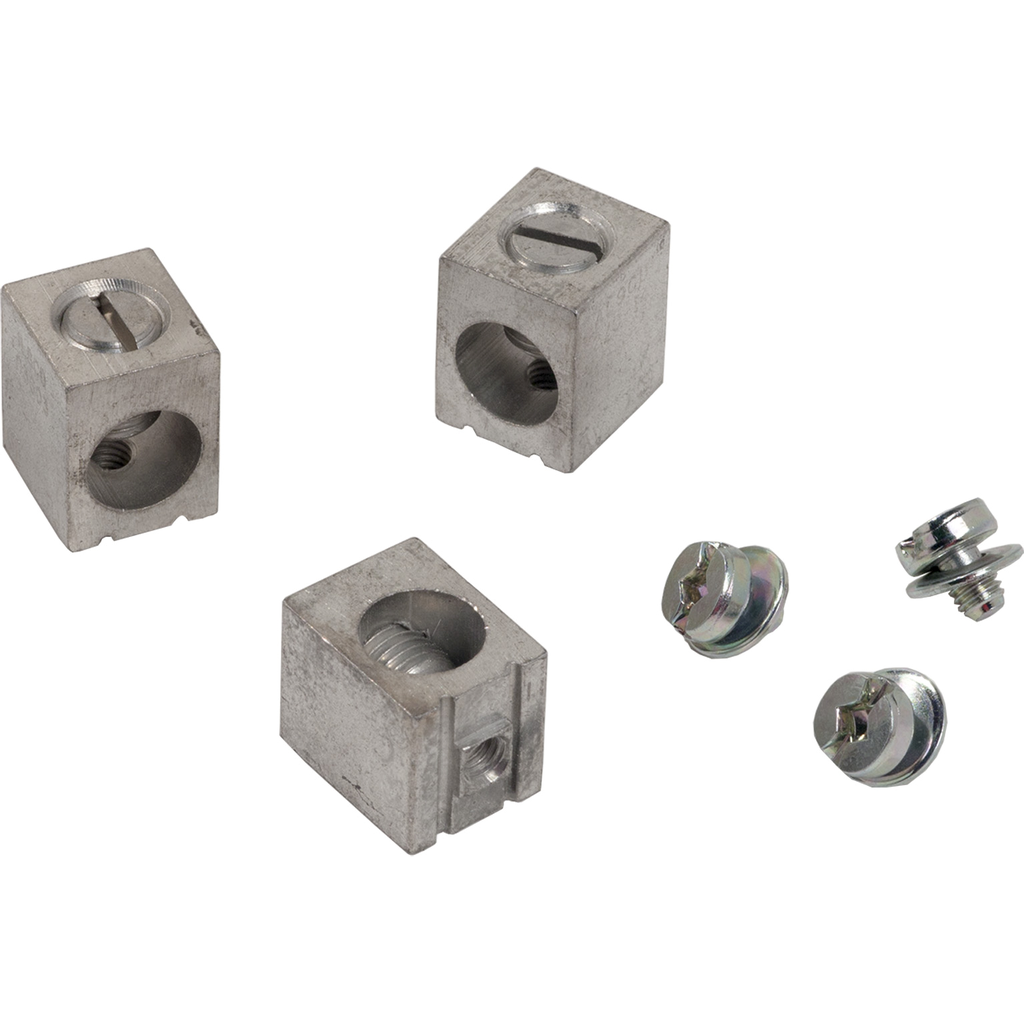

AL100FD
35 TO 110A CIRCUIT BREAKER MECHANICAL LUG KIT
Specifications
| Range Of Product |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 35-110 A |
| Mounting Mode | unit mount |
| Fixing Mode | by screws |
| Location Of Connection |
|
| Product Compatibility |
|
| Material | aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1610005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
