AK5PC331

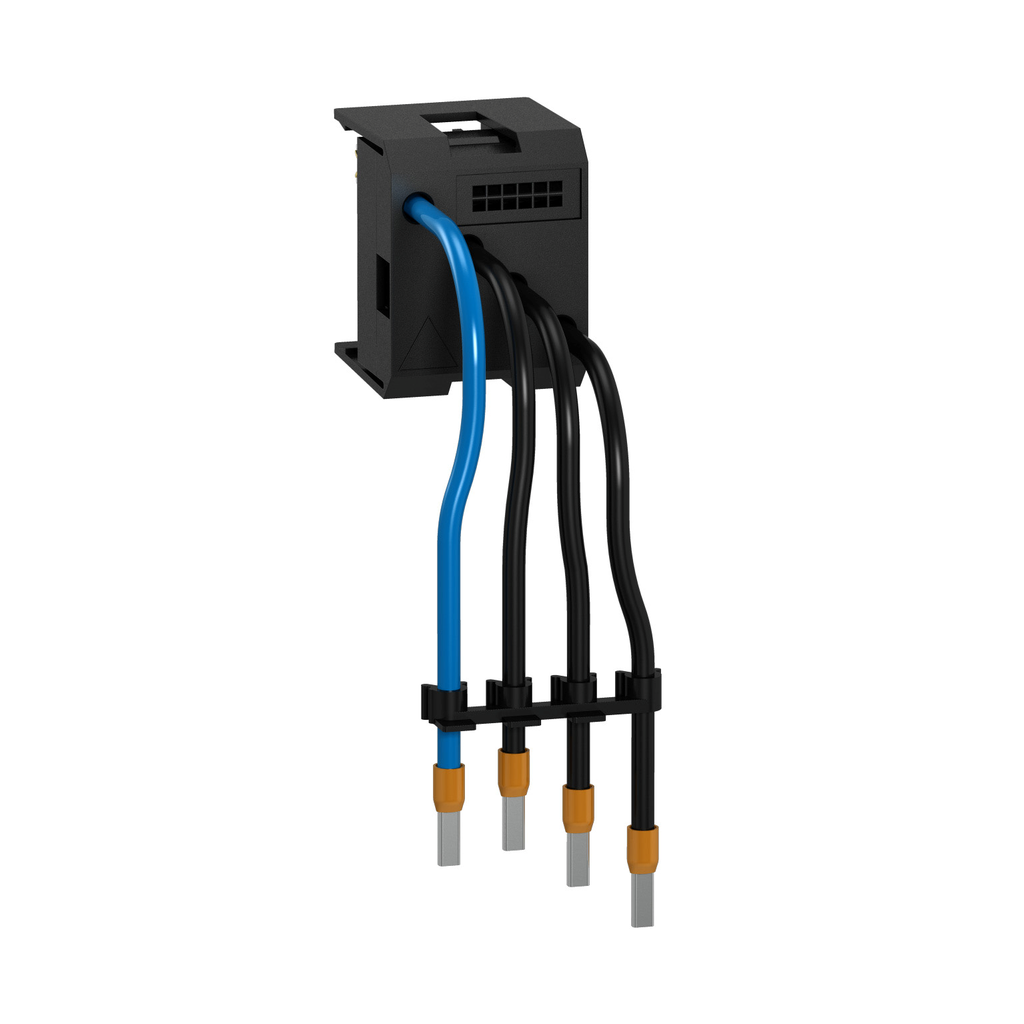

Plug outlet, Linergy HK, 3P+Nc, 32A, 2 points, cable length 250mm
Specifications
| Number Of Points | 2 |
|---|---|
| [Ith] Conventional Free Air Thermal Current |
|
| Cable Length | 0.25 m |
| Product Or Component Type | plug outlet |
| Product Name | HK |
| Range | Linergy |
| Number Of Cables |
|
| Poles Description | 3P + Nc |
| Quantity Per Set | set of 6 |
| I²T On Activation | 200000 A².s |
| Warranty | 18 months |
| Height | 46 mm |
| Net Weight | 0.05 kg |
| [Ui] Rated Insulation Voltage |
|
| Electrical Connection | connector |
| Width | 36 mm |
| Depth | 38 mm |
| Peak Current | 25 kA |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120206EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards | IEC 60439 |
Documents
- Spec Sheet
- AK5 PE... Extension plates - 1319378_01A55 (pdf)
- Linergy HK - AK5JB - AK5PC - AK5PA - Instruction Sheet - EAV6376201 (pdf)
- AK5 BT01 Side Stop - 1319436_01A55 (pdf)
- AK5 JB… - AK5 PC Busbar systems - Removable power sockets - Instrcution sheet - 131937101A50+08 (pdf)
- AK5 Mounting clip - 1319432_01A55 (pdf)
- AK5 PA... Component mounting plates incorporating tap-off - 1319372_01A55 (pdf)
- Catalogue TeSys 2019 - Chapter B1- Busbar systems Linergy BZ HK - B1+-+Systèmes+de+jeux+de+barres+de+puissance_FR+(web) (pdf)
