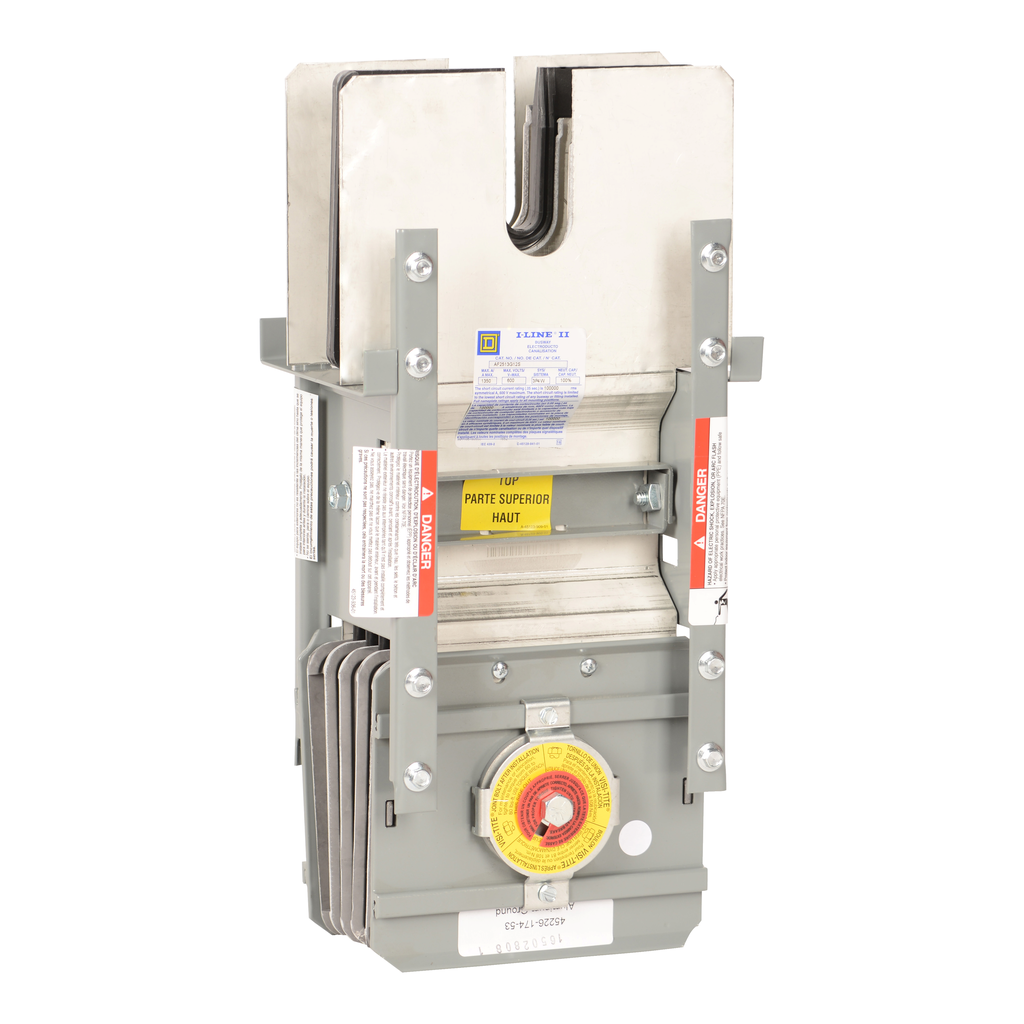

AF2513G12S
Adaptor - I-Line - 1350A - 4W - slot - Al - 12.00in
Specifications
| Range Of Product | I-Line |
|---|---|
| Product Or Component Type | adaptor |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
| Material | aluminium busbar |
| Protection Type | 50 percent capacity integral ground bus |
| Wiring Configuration | 4-wire |
| Line Rated Current | 1350-1350 A aluminium |
| Location | slot |
| Phase | 3 phase |
| Length | 12 in |
| Product Destination | busbar trunking 1350-1350 A aluminium |
| Mounting Location | indoor |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407015EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Standards |
|
