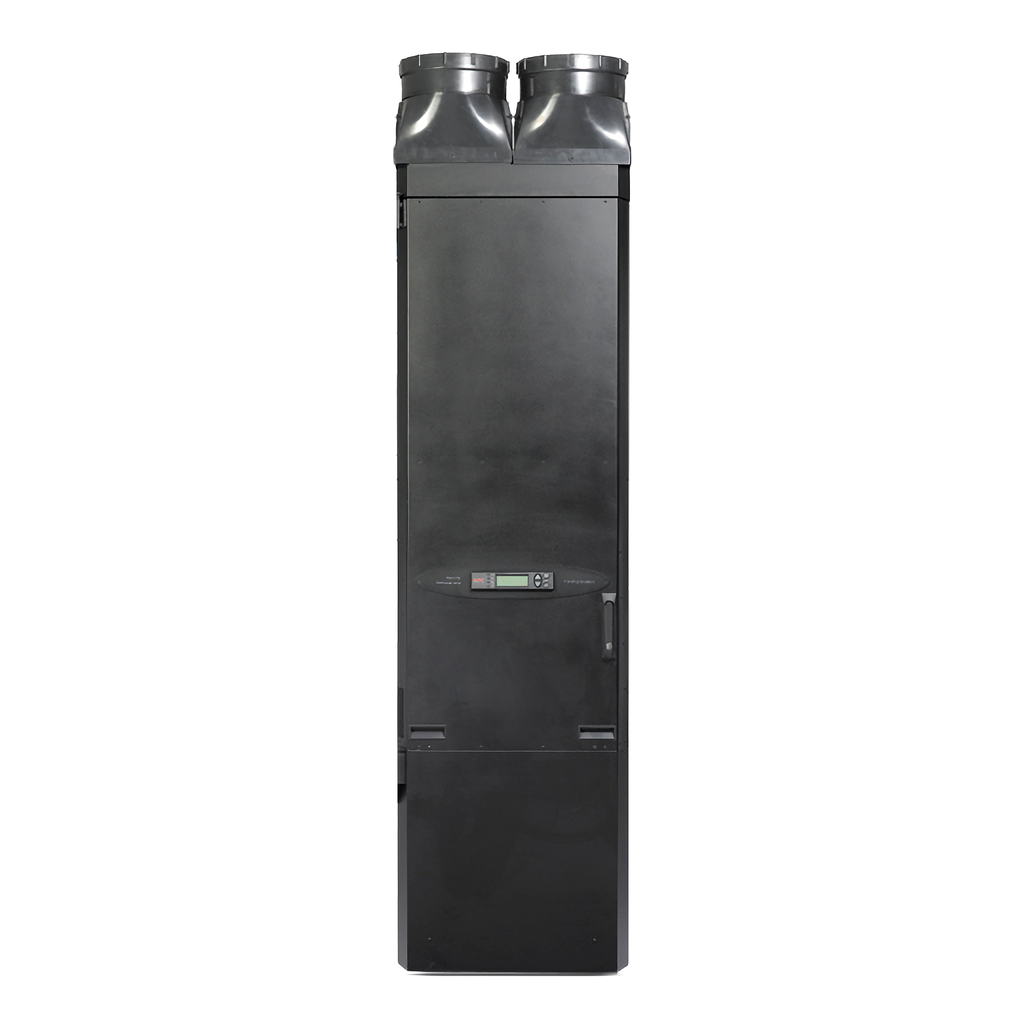

ACF400
Rack Air Removal Unit SX 100-240V 50/60HZ for NetShelter 600mm enclosures.
Specifications
| Main Input Voltage |
|
|---|---|
| Number Of Cables | 2 |
| Provided Equipment |
|
| Warranty | 1 year (parts only) |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | 0-50 °C |
| Ambient Air Temperature For Storage | 0-50 °C |
| Storage Altitude | 0-15000 ft |
| Relative Humidity | 0-95 % |
| Acoustic Level | 79 dBA |
| Air Flow | 1600 ft³/min |
| Control Panel | Multi-function LCD status and control console |
| Height | 191.8 cm |
| Mounting Mode | not rack-mountable |
| Color | Black |
| Width | 59.7 cm |
| Depth | 25.4 cm |
| Net Weight | 67.26 kg |
| Circularity Profile | ENVEOLI1512008_V1 |
| Environmental Disclosure | ENVPEP1512008_V1 |
| Sustainable Offer Status | Green Premium product |
| Lead Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Input Power | 1200 W |
| Input Frequency | 50/60 Hz |
| Lead Time | Usually in Stock |
| Presentation | High-density equipment creates an environment where traditional air distribution methods are often not effective. Densely packed enclosures can cause IT equipment to overheat, resulting in downtime. The Rack Air Removal Unit SX captures exhaust heat, returns the warm air to the plenum and eliminates hot spots from the data center. Through automatic fan speed control based upon temperature, the fans will self-adjust for optimal performance. With a unit-mounted LCD display, users can view temperatures at the rack, monitor alarm conditions and adjust unit set points. The integrated network management card allows for remote monitoring and control. This space-saving solution mounts to the back of either the NetShelter SX or VX enclosure, requiring zero U space. |
| Product Certifications |
|
| Standards |
|
