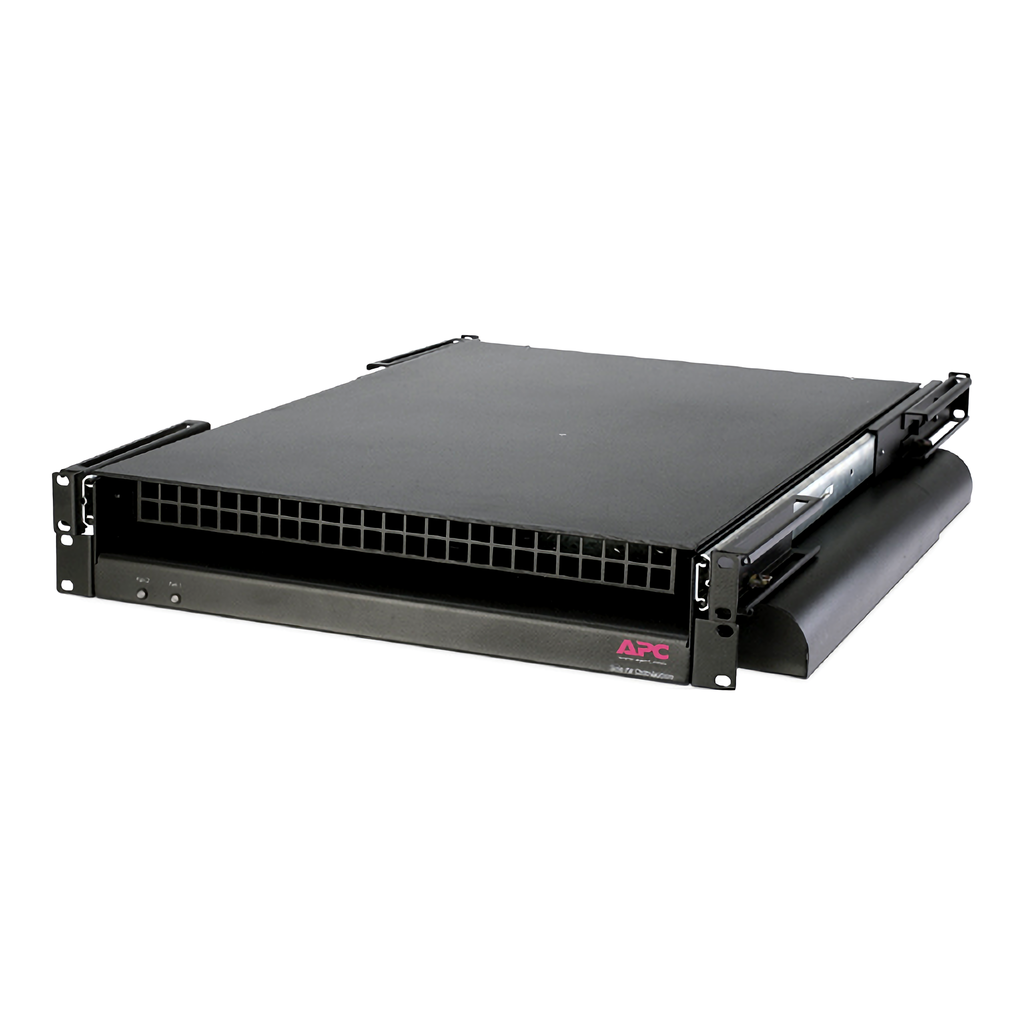

ACF201BLK
Rack Side Air Distribution 2U 115V 60HZ
Specifications
| Main Input Voltage | 120 V |
|---|---|
| Number Of Cables | 2 |
| Number Of Rack Unit | 2U |
| Provided Equipment |
|
| Warranty | 2 years repair or replace |
| Air Flow | 260 ft³/min |
| Control Panel | Power on/off indicator |
| Height | 8.7 cm |
| Mounting Mode | rack-mounted |
| Color | Black |
| Width | 43.1 cm |
| Depth | 66.9 cm |
| Net Weight | 14.56 kg |
| Eu Rohs Directive | Under investigation |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Input Power | 150 W |
| Input Frequency | 60 Hz +/- 5 Hz |
| Lead Time | Usually in Stock |
| Presentation | Housing equipment with side to side airflow creates many challenges for IT and facility managers, particularly in regards to cooling. Because most enclosures are designed for a front to back airflow pattern, it is difficult to maintain ideal operating temperatures on side to side airflow equipment. The Rack Side Air Distribution Unit is a 2U rack mountable air distribution product for networking equipment or servers with side to side airflow. It pulls in conditioned air from the front of the rack and distributes it to the side air intake of the networking equipment. |
| Product Certifications | UL Recognized |
