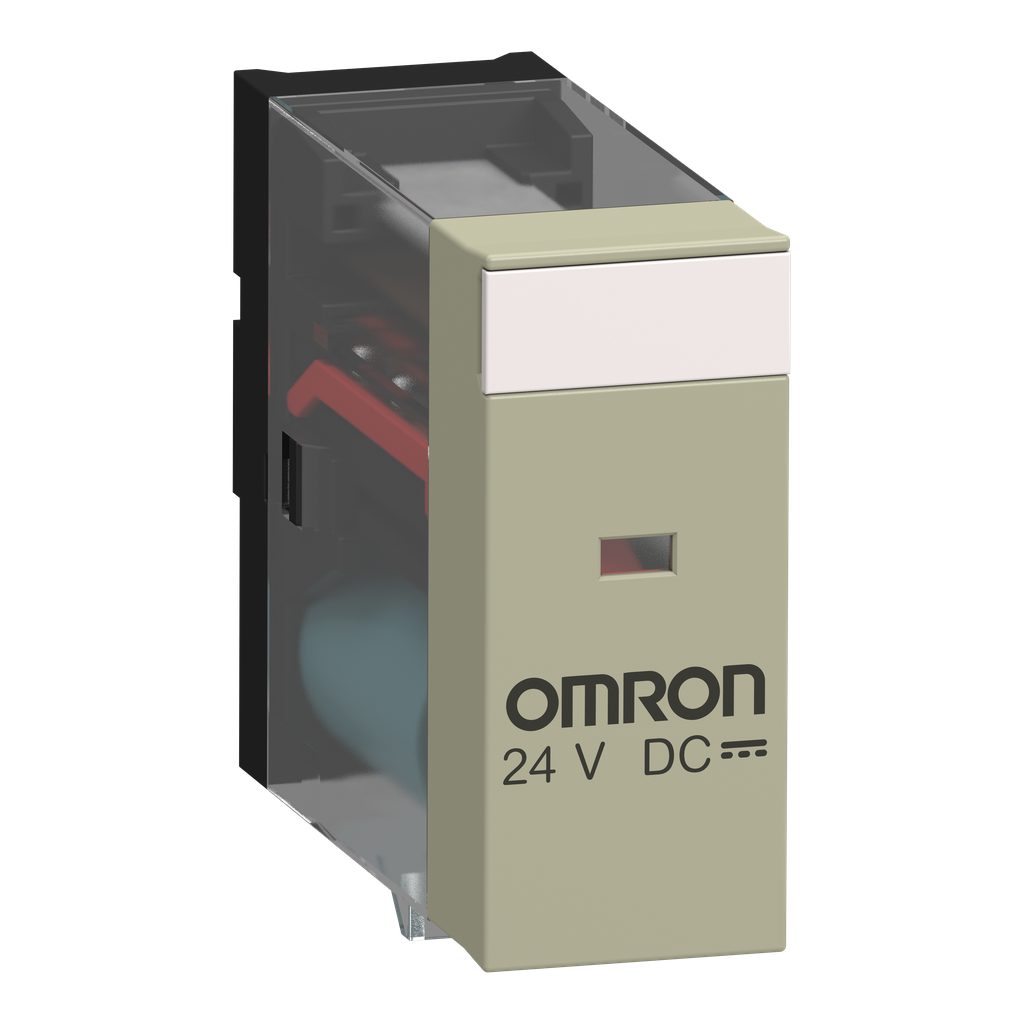

plug-in electromechanical relay - 12.5 mm - 24 V DC - 1 CO
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in electromechanical relay is compatible with Modicon ABE7 connection sub-bases. It has 1 change over contact. It is a solid state relay with a control circuit voltage of 24V DC, a conventional free air thermal current of 10A and a maximum power dissipation per pole is 0.6W. It offers electrical durability of 500000 cycles and mechanical durability of 20 million cycles. The width pitch is 12mm. It weighs 0.017kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P08T330E, ABE7R16T332, ABE7P16T334, ABE7P16T318E, ABE7P16T318, ABE7P16T332, ABE7P16T330, ABE7R16T330, ABE7P16T330E and ABE7P08T330 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Circuit Type | DC |
|---|---|
| Range Of Product | Advantys Telefast ABE7 |
| Product Or Component Type | plug-in electromechanical relay |
| Quantity Per Set | set of 4 |
| Warranty | 18 months |
| Minimum Switching Current | 100 mA >= 5 V |
| Maximum Power Dissipation Per Pole | 0.6 W |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Associated Fuse Rating | 1 A, fast blow |
| Electrical Durability |
|
| Net Weight | 0.017 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Maximum Switching Voltage |
|
| Width Pitch Dimension | 12 mm |
| Contacts Type And Composition | 1 C/O |
| Mechanical Durability | 20000000 cycles |
| Drop-Out Voltage | 3.6 V 20 °C |
| Operating Rate In Hz |
|
| Product Compatibility |
|
| [Uc] Control Circuit Voltage | 24 V |
| Electrical Reliability | 1e-008 |
| Threshold Tripping Voltage | 16.8 V 40 °C |
| Drop-Out Current | 3.5 mA 20 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Dielectric Strength | 2000 V IEC 60947-1 |
| Max Immunity To Microbreaks | 5 ms |
