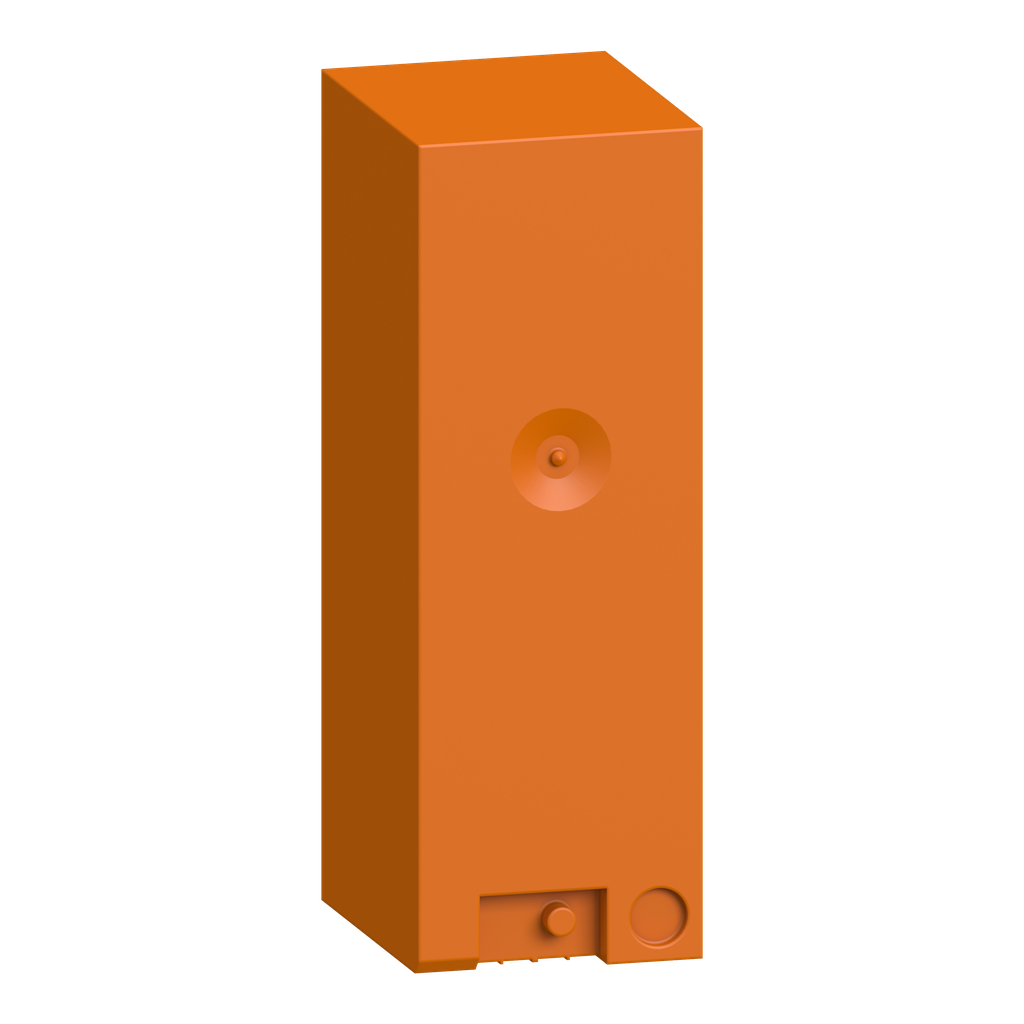

plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Circuit Type | DC |
|---|---|
| Range Of Product | Advantys Telefast ABE7 |
| Product Or Component Type | plug-in electromechanical relay |
| Quantity Per Set | set of 4 |
| Warranty | 18 months |
| Minimum Switching Current | 10 mA >= 5 V |
| Maximum Power Dissipation Per Pole | 0.36 W |
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Associated Fuse Rating | 1 A, fast blow |
| Electrical Durability |
|
| Net Weight | 0.008 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Maximum Switching Voltage |
|
| Width Pitch Dimension | 10 mm |
| Contacts Type And Composition | 1 NO |
| Mechanical Durability | 20000000 cycles |
| Drop-Out Voltage | 2.4 V 20 °C |
| Width | 10 mm |
| Operating Rate In Hz |
|
| Product Compatibility |
|
| [Uc] Control Circuit Voltage | 24 V |
| Electrical Reliability | 1e-008 |
| Threshold Tripping Voltage | 19.7 V 40 °C |
| Drop-Out Current | 1 mA 20 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Dielectric Strength | 2000 V IEC 60947-1 |
| Max Immunity To Microbreaks | 5 ms |
