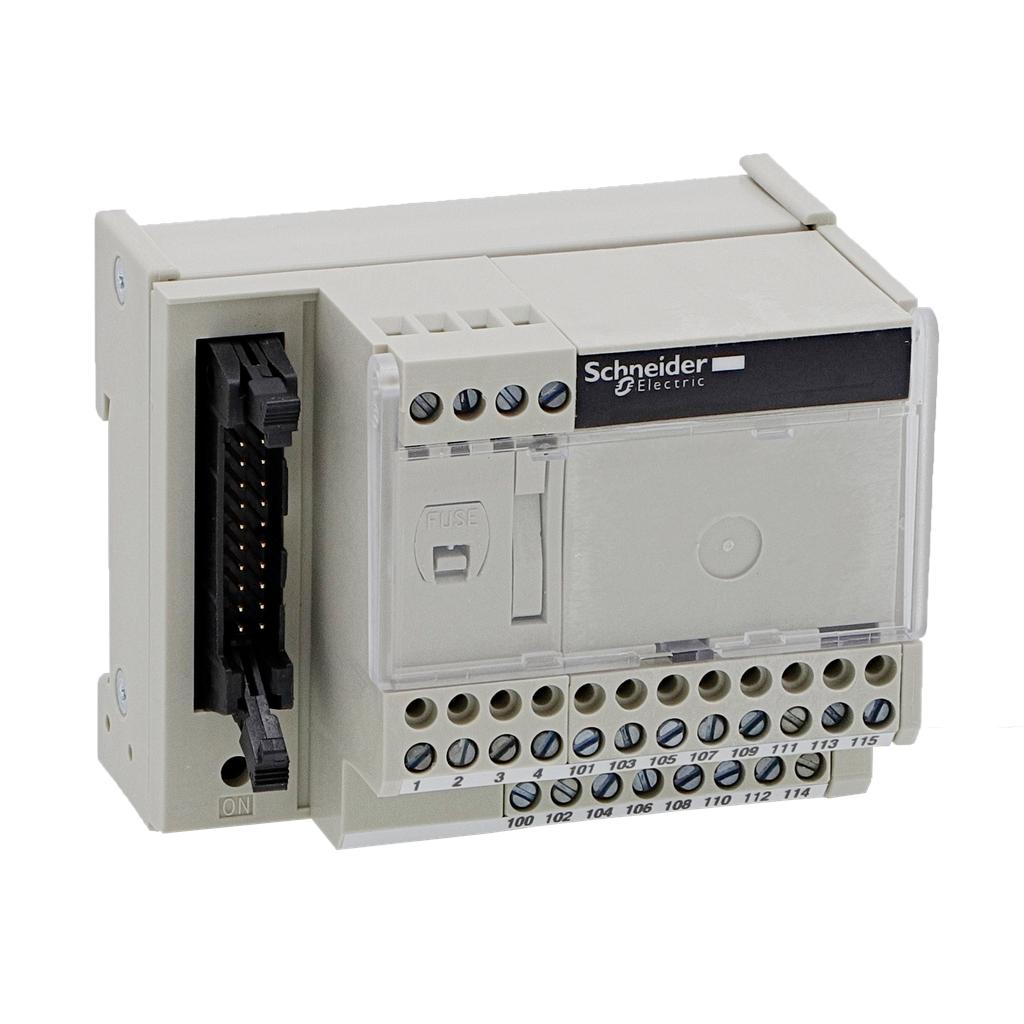

ABE7H16R50 - passive connection sub-base ABE7 - 16 inputs or outputs

ABE7H16R50

passive connection sub-base ABE7 - 16 inputs or outputs

Add to Quote Catalogue

Specifications

Range Of Product	Modicon ABE7
Product Or Component Type	passive discrete I/O sub-base
Number Of Terminal Per Channel	1
Connections - Terminals	screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Number Of Channels	16
Sub-Base Type	I/O sub-base
[Us] Rated Supply Voltage	19...30 V IEC 61131-2
Warranty	18 months
Pin Number	20 pins
Short-Circuit Protection	2 A internal fuse, 5 x 20 mm, fast blow PLC end)
Number Of Horizontal Rows	2
Current Per Channel	0.5 A
Status Led	1 LED (Green) power ON
Installation Category	II IEC 60664-1
Maximum Current Per Output Common	1.8 A
[Ui] Rated Insulation Voltage	2000 V
Net Weight	0.196 kg
Fixing Mode	by clips 35 mm symmetrical DIN rail) by screws solid plate with fixing kit)
Connector Type	HE-10
Polarity Distribution	no
Tightening Torque	0.6 N.m flat Ø 3.5 mm
Maximum Supply Current	1.8 A
Supply Circuit Type	DC
Width	84 mm
Voltage Drop On Power Supply Fuse	0.3 V
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP121229EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1212029EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	DNV UL CSA GL EAC
Resistance To Radiated Fields	10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Ambient Air Temperature For Operation	-5-60 °C IEC 61131-2
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Vibration Resistance	2 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP2X conforming to IEC 60529
Pollution Degree	2 IEC 60664-1
Resistance To Incandescent Wire	750 °C IEC 60695-2-11
Ambient Air Temperature For Storage	-40-80 °C IEC 61131-2
Resistance To Electrostatic Discharge	4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2
Resistance To Fast Transients	2 kV level 3 IEC 61000-4-4
