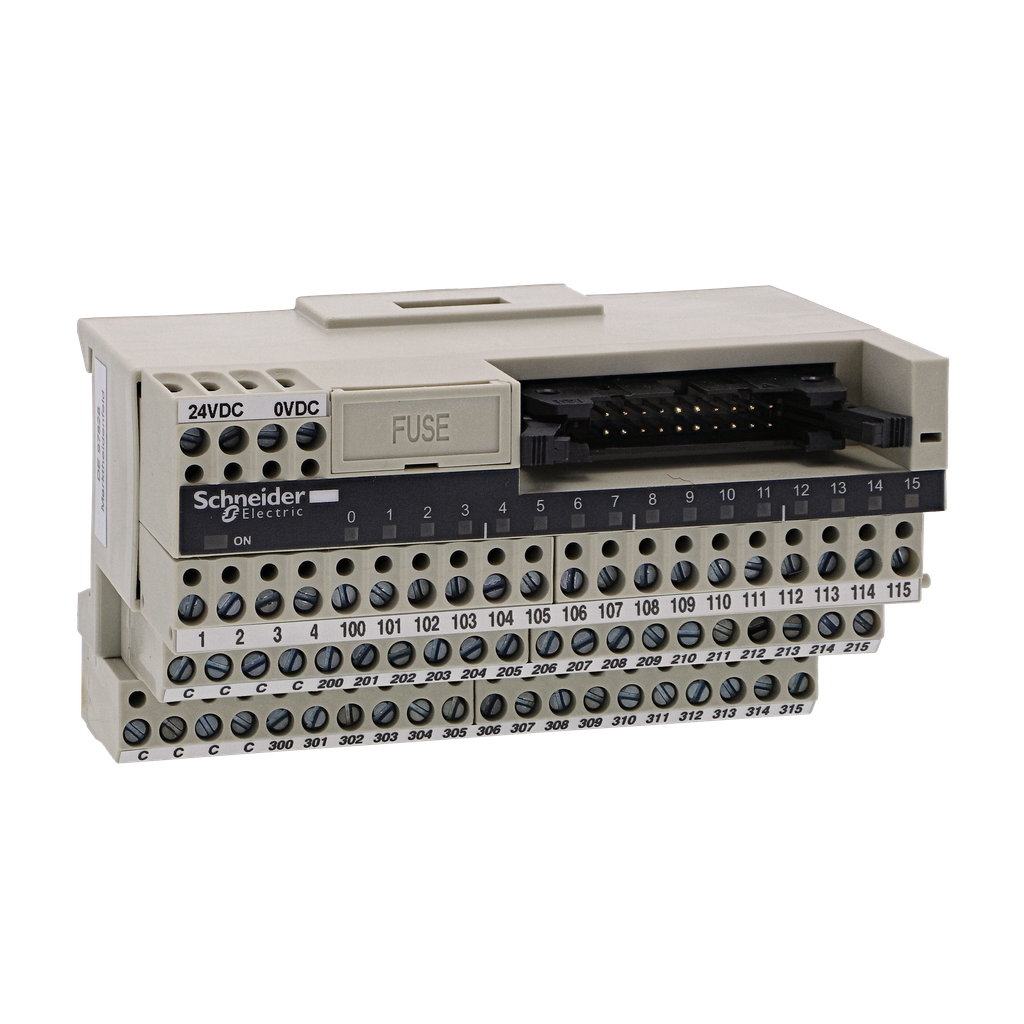

passive connection sub-base ABE7 - 16 inputs or outputs - Led
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 3 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.26kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon ABE7 |
|---|---|
| Product Or Component Type | passive discrete I/O sub-base |
| Number Of Terminal Per Channel | 3 |
| Connections - Terminals |
|
| Number Of Channels | 16 |
| Sub-Base Type | miniature sub-base |
| [Us] Rated Supply Voltage | 19...30 V IEC 61131-2 |
| Warranty | 18 months |
| Short-Circuit Protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Number Of Horizontal Rows | 3 |
| Current Per Channel | 0.5 A |
| Status Led |
|
| Installation Category | II IEC 60664-1 |
| Maximum Current Per Output Common | 1.8 A |
| [Ui] Rated Insulation Voltage | 2000 V |
| Net Weight | 0.26 kg |
| Fixing Mode |
|
| Polarity Distribution | 0 V or 24 V |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Maximum Supply Current | 1.8 A |
| Supply Circuit Type | DC |
| Voltage Drop On Power Supply Fuse | 0.3 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 2 gn 10-150 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
