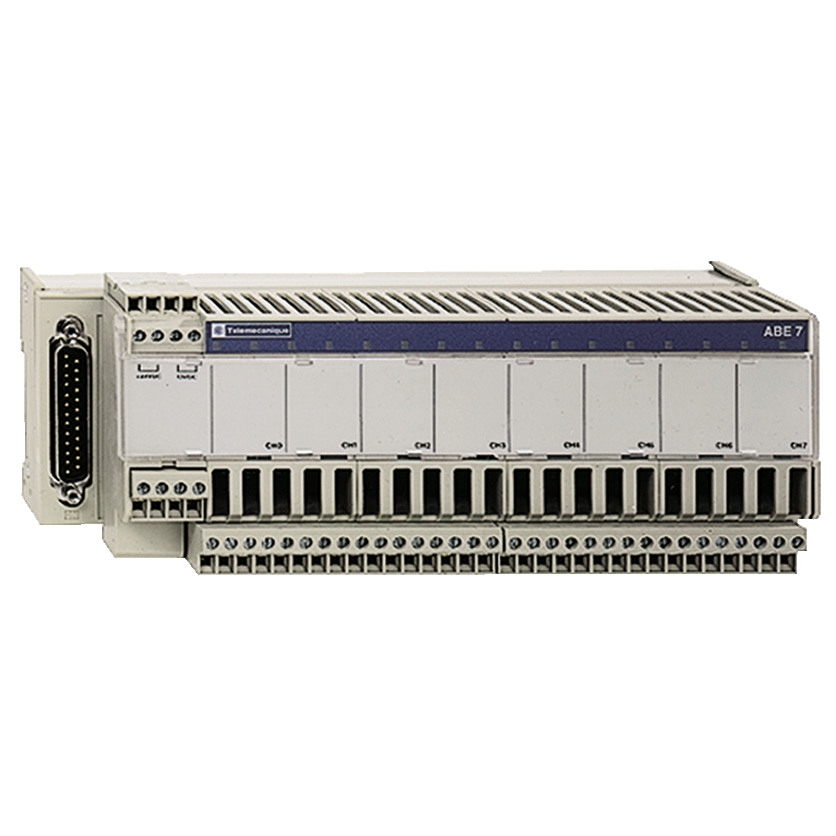

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with spring type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon ABE7 |
---|---|
Product Or Component Type | connection sub-base for counter and analogue channels |
Connections - Terminals |
|
Number Of Channels | 8 |
Warranty | 18 months |
[Uc] Control Circuit Voltage | 24 V DC |
Installation Category | II IEC 60664-1 |
Net Weight | 0.41 kg |
Fixing Mode |
|
Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
Connection To Plc | SUB-D 25 |
[Ui] Rated Insulation Voltage | 2000 V terminals/mounting rails |
Function Of Module | isolated analogue input Premium |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
Ambient Air Temperature For Operation | 0-60 °C IEC 61131-2 |
Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
Vibration Resistance | 2 gn 10-150 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Pollution Degree | 2 IEC 60664-1 |
Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
Resistance To Electrostatic Discharge |
|
Protective Treatment | TC |
Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
