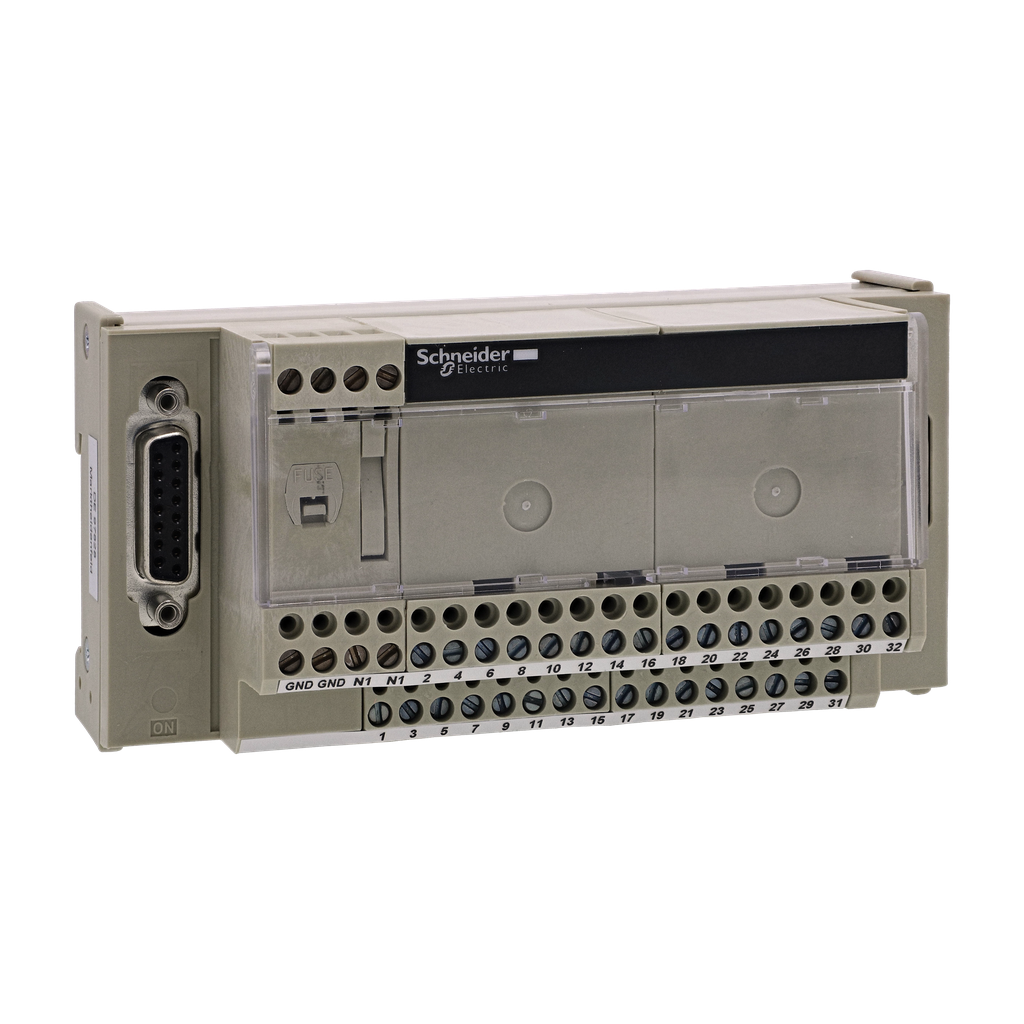

ABE7CPA01
connection sub-base ABE7 - for counter and analog channels
Specifications
| Range Of Product | Modicon ABE7 |
|---|---|
| Product Or Component Type | connection sub-base for counter and analogue channels |
| Connections - Terminals |
|
| Number Of Channels |
|
| Warranty | 18 months |
| [Uc] Control Circuit Voltage | 24 V DC |
| Installation Category | II IEC 60664-1 |
| Net Weight | 0.3 kg |
| Fixing Mode |
|
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Product Compatibility |
|
| Connection To Plc | SUB-D 15 |
| [Ui] Rated Insulation Voltage | 2000 V terminals/mounting rails |
| Function Of Module |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | 0-60 °C |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 2 gn 10-150 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
