Acti9 - comb busbar - 3L+N - 18 mm pitch - 24 modules - 100 A

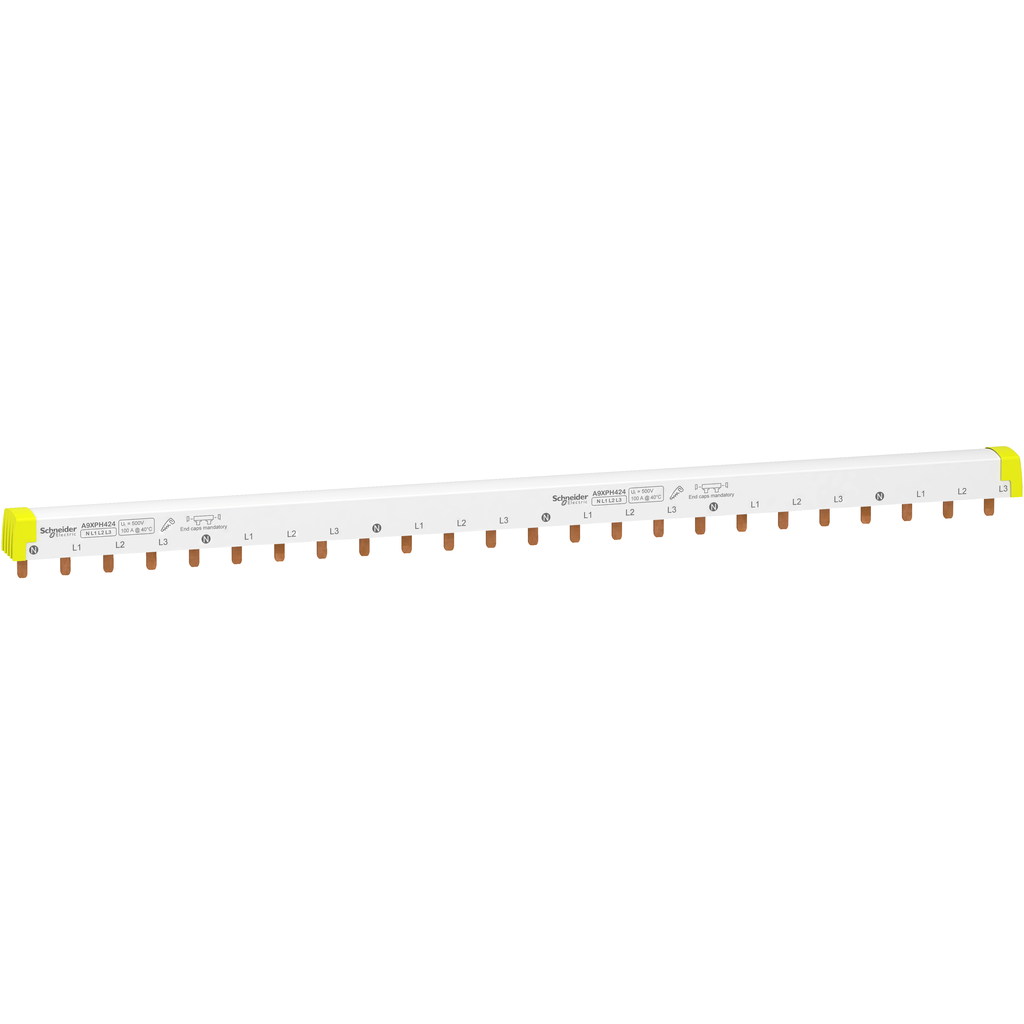

This Acti9 product is a cuttable horizontal comb busbar 24 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 6 devices (3P+N). The length is 430mm.The total number of modules of 18mm is 24. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Total Number Of 18 Mm Modules | 24 |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| Range | Acti9 |
| Mounting Mode | horizontal |
| Lines Description | 3L + N |
| Warranty | 18 months |
| Range Compatibility |
|
| Number Of Ways | 6 ways N + 3 L |
| 9 Mm Pitches | 48 |
| Distance Between Way | 72 mm |
| Marking | N L1 L2 L3 |
| Connector Type | tooth |
| Device Presentation | cuttable |
| [Ui] Rated Insulation Voltage | 500 V AC IEC 61439-2 |
| [Ie] Rated Operational Current | 100 A 40 °C |
| Insulation | insulated |
| [Ue] Rated Operational Voltage | 415 V AC |
| Connection Pitch | 18 mm |
| Color | White RAL 9003) |
| Width | 430 mm |
| Mounting Location |
|
| Poles Configuration For 1 Way |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2005011 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 with end-pieces and tooth covers |
| Standards |
|
| Pollution Degree | 3 IEC 60947-7-1 |
| Fire Resistance | 960 °C 30 s ) IEC 60695-2-1 |
