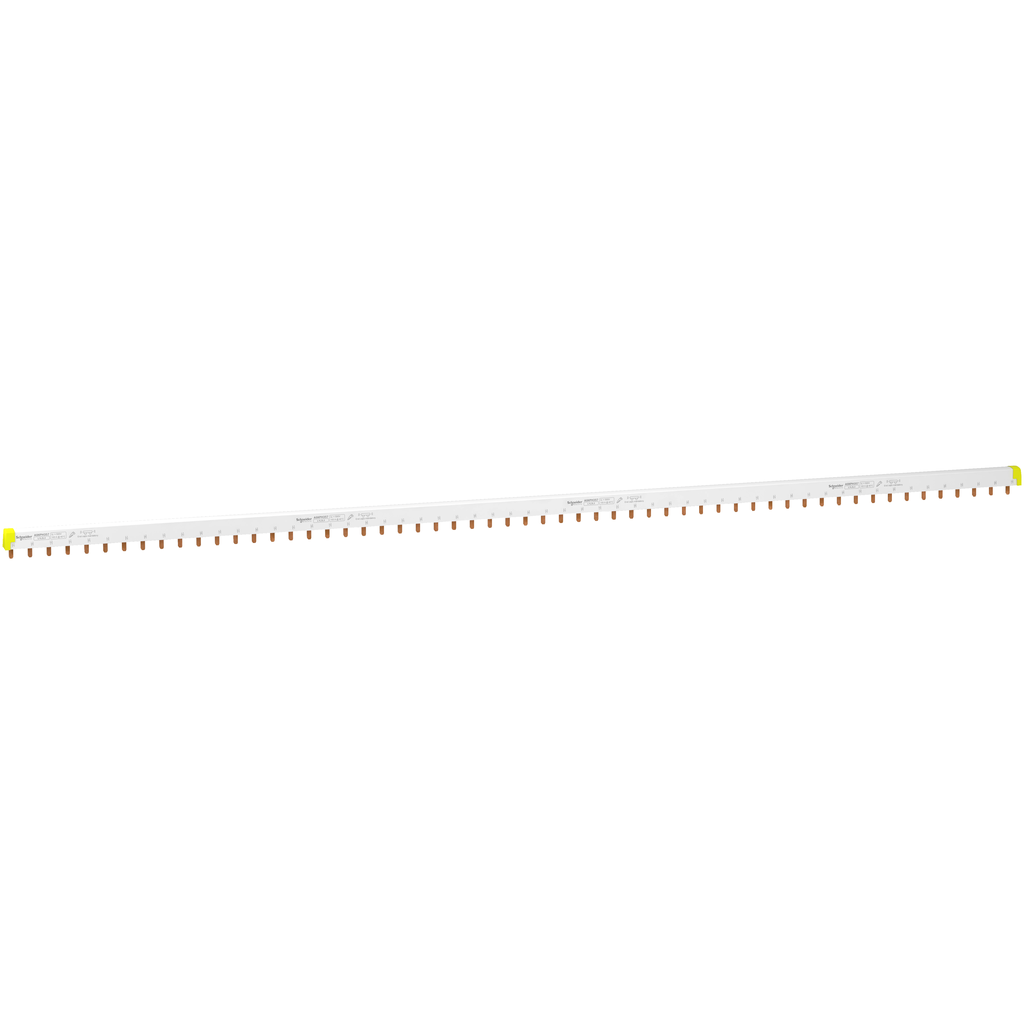

Acti9 - comb busbar - 3L - 18 mm pitch - 57 modules - 100A
This Acti 9 accessory is solution for safe and reliable comb busbar. It is made for 1 pole and 3 poles devices, rated at 100 amperes and it has 57 modules. This product benefits from Schneider Electric expertise with more than 40 years developing modular devices for commercial and industrial applications. Quickly and safely build your main distribution board with a reliable and safe comb busbar from Schneider Electric. 100 A current rating, can fit the most demanding applications. Ideal for 3 phase installations. 57 modules length, easy-to-cut 513 mm busbar for any panel application. Insulated comb busbar to protect users against electric shocks and installation against arc flash faults. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Total Number Of 18 Mm Modules | 57 |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| Range | Acti9 |
| Mounting Mode | horizontal |
| Lines Description | 3L |
| Warranty | 18 months |
| Height | 1000 mm |
| Provided Equipment | set of 10 end piece |
| Range Compatibility |
|
| Number Of Ways | 19 ways 3 L |
| 9 Mm Pitches | 114 |
| Distance Between Way | 54 mm |
| Marking | L1 L2 L3 |
| Connector Type | tooth |
| Device Presentation | cuttable |
| [Ui] Rated Insulation Voltage | 500 V AC IEC 61439-2 |
| [Ie] Rated Operational Current | 100 A 40 °C |
| Insulation | insulated |
| [Ue] Rated Operational Voltage | 415 V AC |
| Connection Pitch | 18 mm |
| Color | White RAL 9003) |
| Mounting Location |
|
| Poles Configuration For 1 Way | 1 x 3P |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2005011 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 with end-pieces and tooth covers |
| Standards |
|
| Pollution Degree | 3 IEC 60947-7-1 |
| Fire Resistance | 960 °C 30 s ) IEC 60695-2-1 |
