A9XPCM04 - Set of 4 connectors 100A monoconnect for 3P N comb busbar

A9XPCM04

Set of 4 connectors 100A monoconnect for 3P+N comb busbar

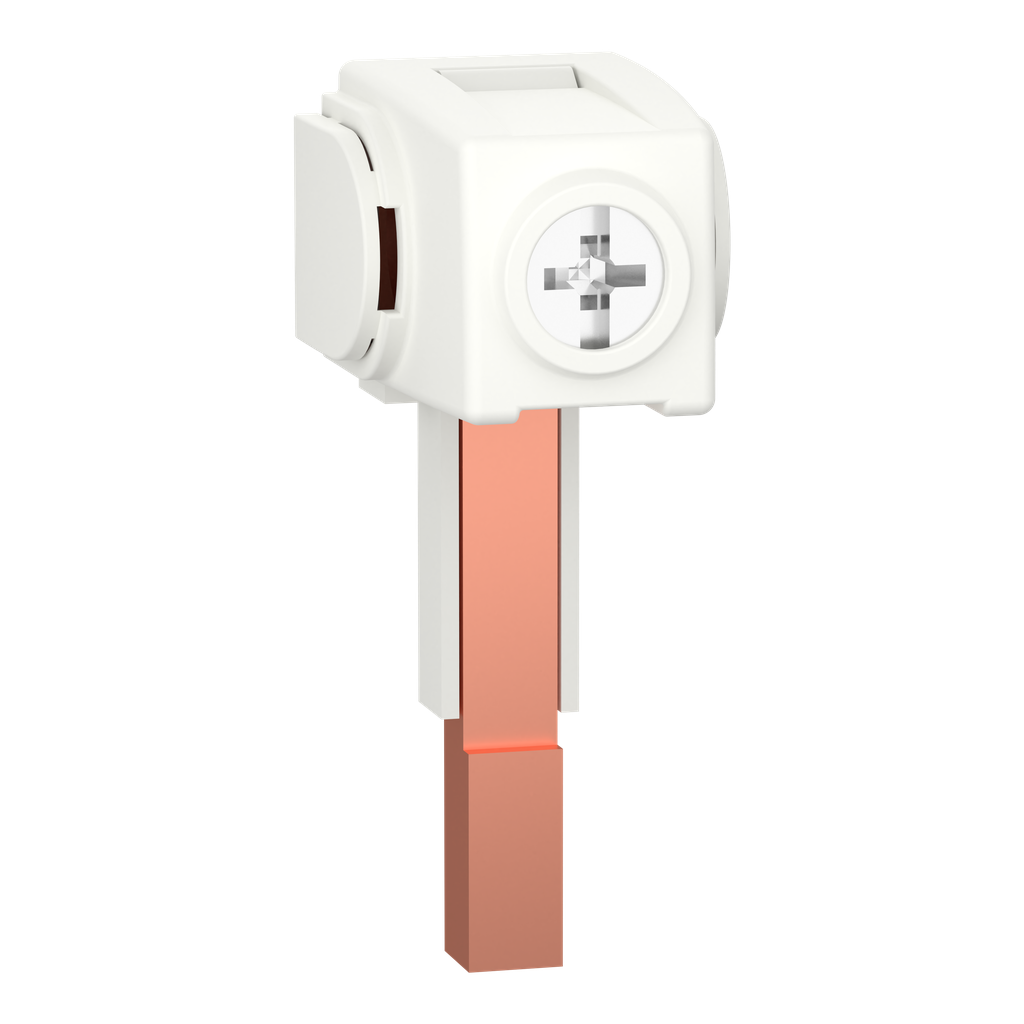

This Acti9 Linergy FH monoconnect connector for Acti9 iC60 and Acti9 iK60 facilitates comb busbar power supply. It is a set of 4 devices. The Type of electric connection is PIN. The pin cross section is 16mm2. The cross section of the cable connector is 35mm2. The tightening torque is 4N.m. The color of the device is white RAL9003. The pollution degree is 3. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Comb Busbar And Distribution Block Compatibility	monoconnect
Accessory / Separate Part Category	connection accessory
Product Or Component Type	connector
Product Name	Linergy FH
Range	Acti9
Poles Description	3P + N
Quantity Per Set	set of 4
Warranty	18 months
Line Rated Current	100 A
Connections - Terminals	screw clamp terminals top connector 35-35 mm²
Range Compatibility	Acti 9 (Acti9 iC60) comb busbar Acti 9 (Acti9 iK60) comb busbar Acti 9 (Acti9 iDPN) comb busbar Acti 9 (Acti9 iDPN Vigi) comb busbar Acti 9 (Acti9 iID) comb busbar Acti 9 (Acti9 iID K) comb busbar Acti 9 (Acti9 iSW) comb busbar Acti 9 (Acti9 iSW-NA) comb busbar Acti 9 (Acti9 STI) comb busbar
Color	White RAL 9003)
Tightening Torque	4-4 N.m
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP2005011
Sustainable Offer Status	Green Premium product
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant

Set of 4 connectors 100A monoconnect for 3P+N comb busbar
