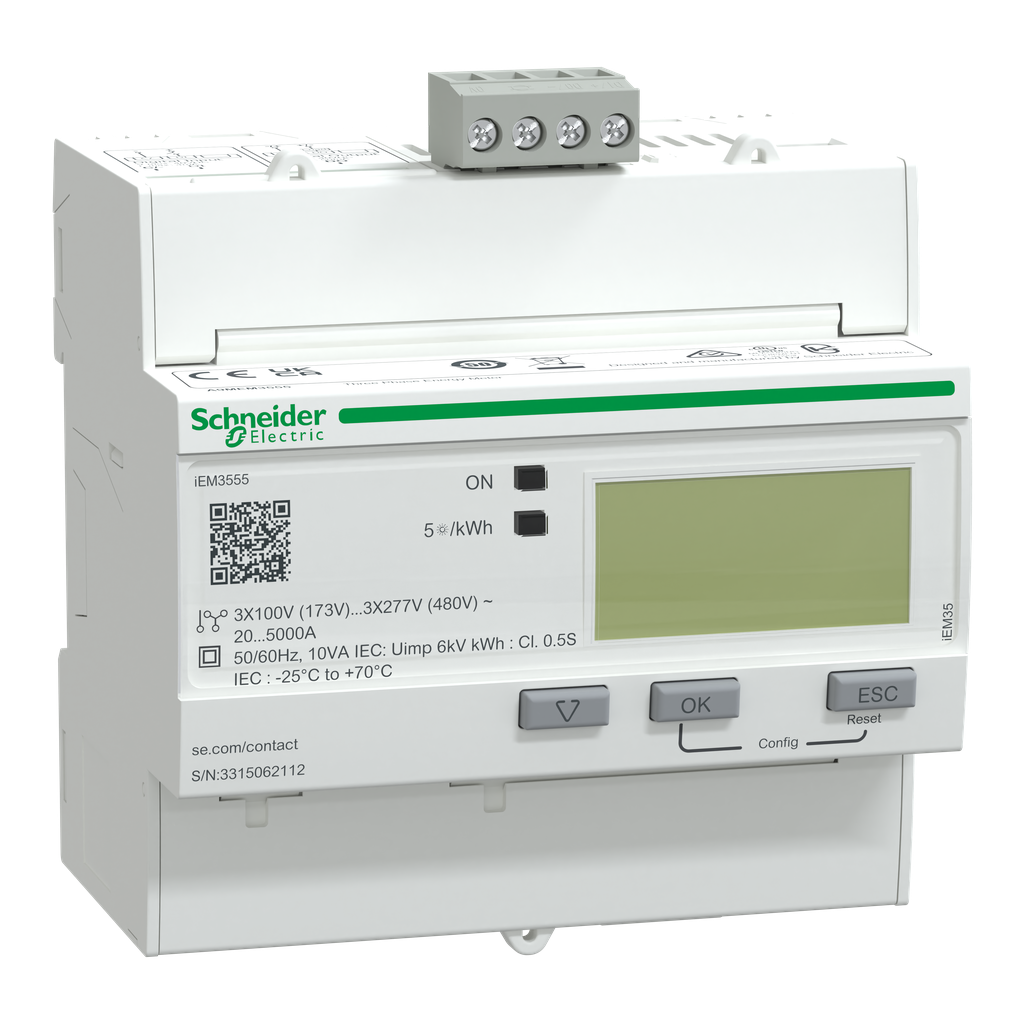

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a Rogowski coil to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm). Compatible with power management software to take advantage of the IoT digital power installation.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | energy meter |
---|---|
Product Name | Acti9 iEM3000 |
Range | Acti9 |
Device Short Name | iEM3555 |
Network Frequency |
|
Communication Port Support | screw terminal block RS485 |
Output Voltage | 5...40 V DC@50 mA |
Sampling Rate | 32 samples/cycle |
Standards |
|
Number Of Outputs | 1 digital (static) |
Mounting Support | DIN rail |
Maximum Value Measured |
|
Type Of Measurement |
|
Communication Port Protocol | Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none |
Product Certifications |
|
Number Of Inputs | 1 digital 0...5 V/11...40 V 24 V DC |
Measurement Current | 50-5000 A |
Wire Stripping Length |
|
Connections - Terminals |
|
Information Displayed | tariff 4) |
Mounting Mode | clip-on |
Local Signalling |
|
Technology Type | electronic |
Poles Description |
|
Analogue Input Type | Rogowski coil 50...5000 A |
Display Type | LCD display |
Tightening Torque |
|
Device Application |
|
Metering Type | active, reactive, apparent energy (signed, four quadrant) |
Accuracy Class |
|
Rated Voltage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111276EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI111261EN_V1 |
Eu Rohs Directive | Compliant |
Ik Degree Of Protection | IK08 |
Height | 87 mm |
Ambient Air Temperature For Operation | -25-70 °C - IEC |
Pollution Degree | 2 |
9 Mm Pitches | 10 |
Color | White |
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 5-95 % 36-36 °C |
Ip Degree Of Protection |
|
Width | 90 mm |
Depth | 69 mm |
Operating Altitude | < 9842.52 ft (3000 m) |
