A9A15151

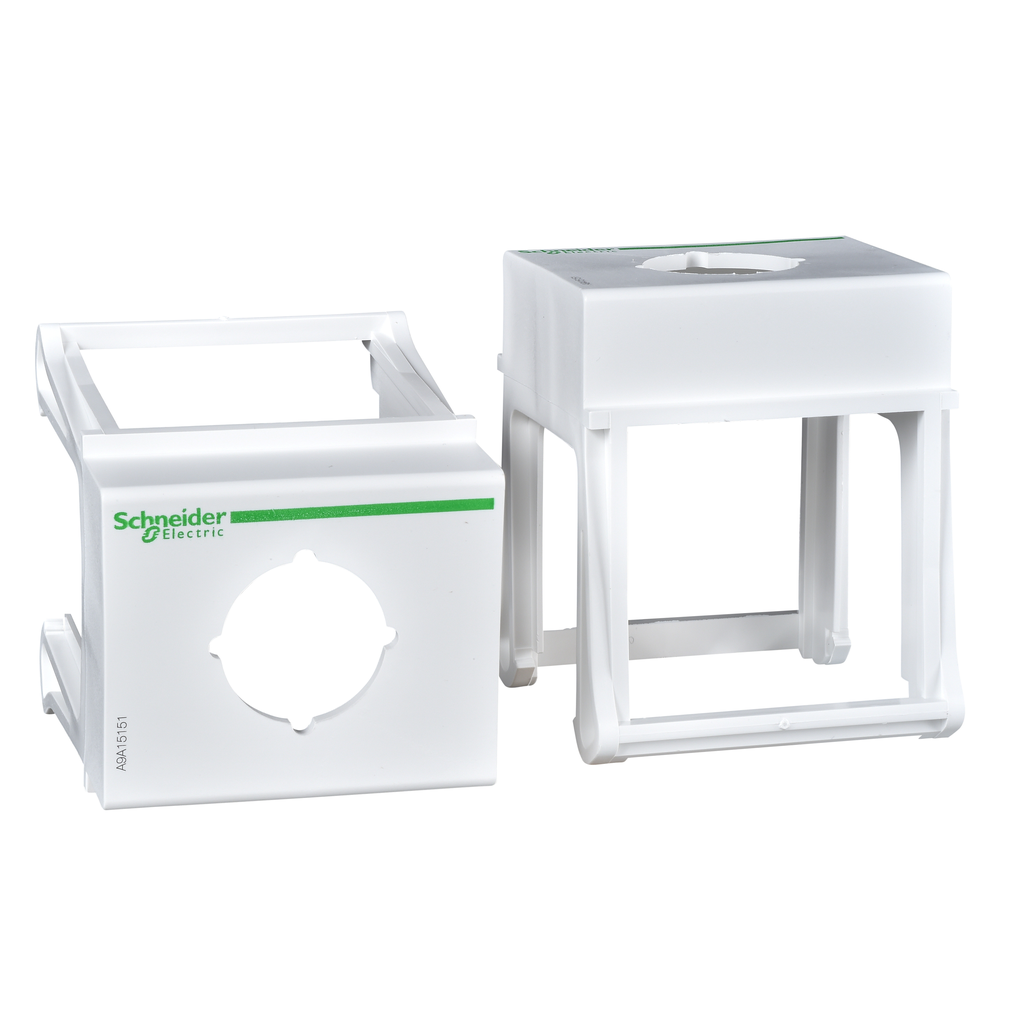

DIN rail mounting base - Ø 22 mm units - for control and signalling unit
This Acti9 button holder is for buttons, switches and indicators with metal or plastic flange of the SE XB4, XB5 type. It is dedicated to 22mm diameter button for control and signalling units. It could be used for control and indications auxiliaries as push-buttons, emergency stops, switches, light indicators. It is suitable for tertiary and industrial applications. It can be attached to a symmetrical 35mm rail, in modular cabinets or enclosures. The color is white (RAL9003). The drilling diameter is 22.3mm. It is a self-extinguishing material. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 60mm x (D) 66,7mm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Control Button Component Destination | command unit |
| Range | Acti9 |
| Button And Pilot Light Accessory Type | mounting support on DIN rail |
| Quantity Per Set | set of 1 |
| Warranty | 18 months |
| Diameter | 22 mm |
| Mounting Support | 35 mm symmetrical rail |
| Fixing Mode | by clips |
| 9 Mm Pitches | 6 |
| Internal Depth | 60 mm |
| Material | insulated material |
| Net Weight | 0.04 kg |
| Mounting Location |
|
| Drilling Diameter | 22.3 mm |
| Product Compatibility |
|
| Colour Tint | white |
| Colour Code | RAL 9003 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
