9999TC20

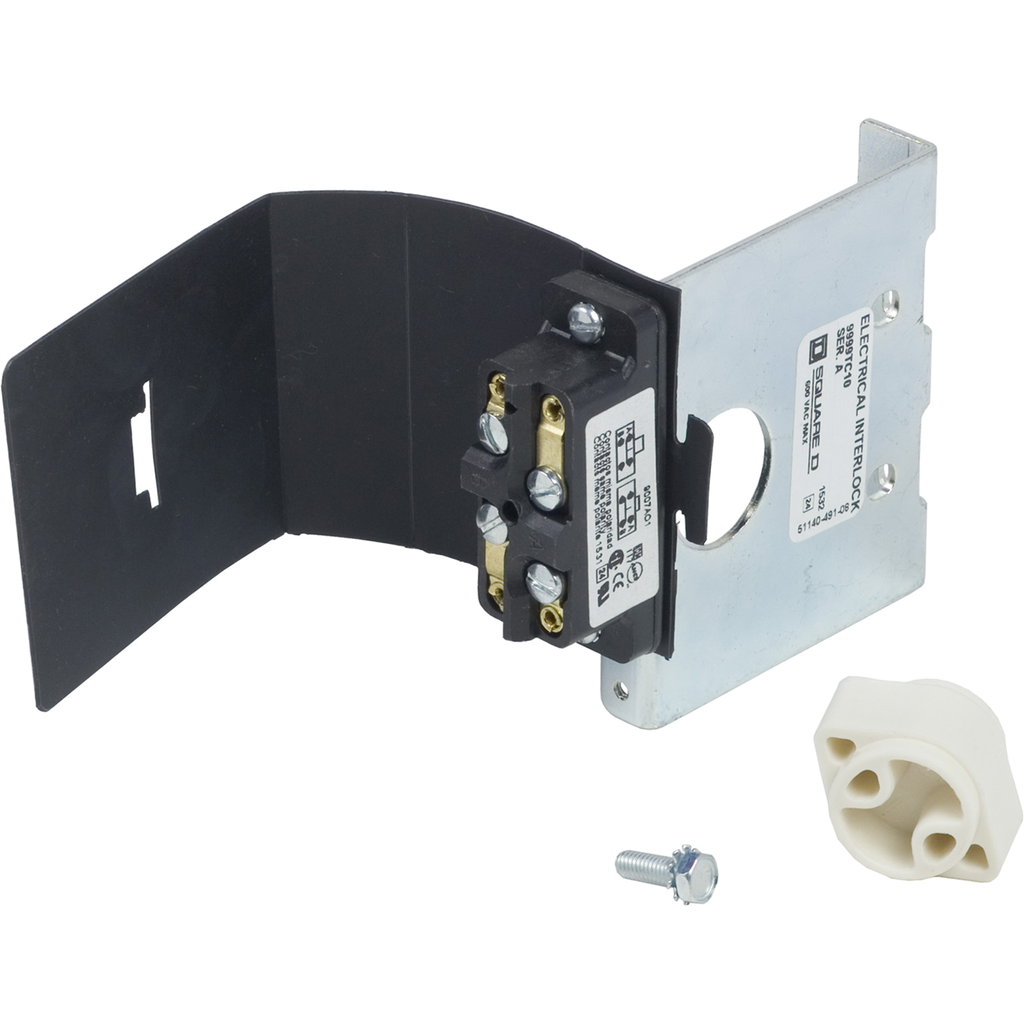

Disconnect mechanism, flange mounted, disconnect switch auxiliary contact kit, 10A, 2 pole, DPDT
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The electrical interlocking contact for these disconnect switches has a DPDT contact that has 10A rating.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | interlock |
|---|---|
| Device Application | control |
| Range | Square D |
| Warranty | 18 months |
| Range Compatibility | Square D Disconnect Switch |
| [Ie] Rated Operational Current |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
