9999SO4
NEMA Motor Starter and contactor, Type S, isolated alarm contacts, for melting alloy overload relays, NO alarm contact

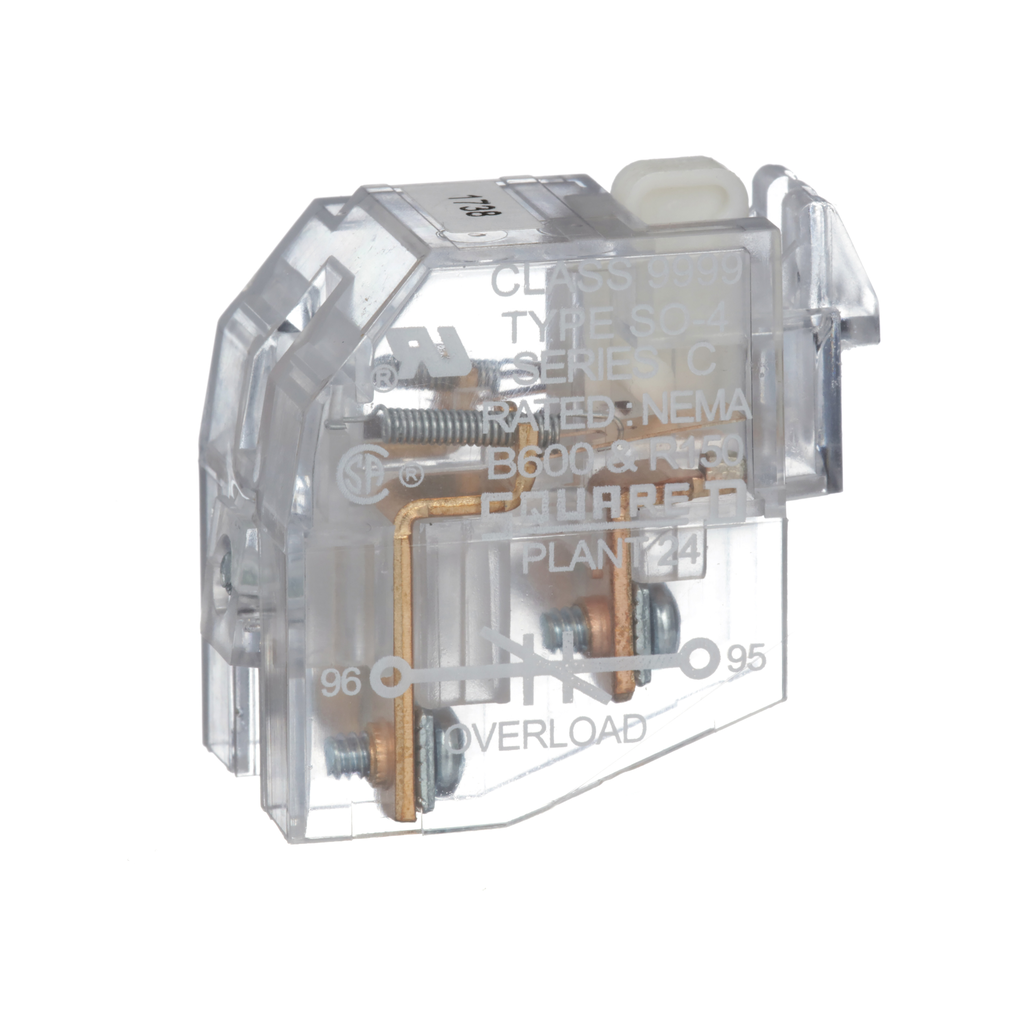

Type S magnetic contactors and starters are for motor control applications. This isolated overload relay alarm contact is available factory installed or as a kit for field installation. This kit will work with melting alloy overload relays used on Type S NEMA size 00 through 6 starters. This module has a normally open isolated alarm contact and a standard normally closed overload relay contact. The case is made of clear plastic to allow for visual inspection of the contacts. This module is UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Overload Type | melting alloy |
|---|---|
| Product Destination | overload relay |
| Range Of Product | Accessory |
| Warranty | 18 months |
| Contacts Type And Composition | 1 NO |
| Product Or Component Type | auxiliary contact |
| [Ue] Rated Operational Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D Definite Purpose Control Catalog - 8910CT9301 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters (SEP 2022) - 0100CT1901_SEC-16_SEP2022 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- 8502SB and 8536SB AC Magnetic Contactors and Starters Installation Instructions - 30072-013-09 (pdf)
- 8502SG and 8536SG, AC Magnetic Contactors and Starters, Size 5, Series A, 2- and 3-Pole Installation Instructions - 30072-013-18 (pdf)
- 8502SA and 8536SA, AC Magnetic Contactors and Starters, Size 00, Series B, 2- and 3-Pole Instruction Bulletin - 30072-013-08 (pdf)
- 8502S and 8536S AC Magnetic Contactors and Starters, Sizes 3 and 4, 4- and 5-Pole, Types SE and SF Installation Instructions - 30072-013-03 (pdf)
- 8502SG/8536SG, Form Y500, Size 5 AC Magnetic 2- and 3-Pole Contactors and 3-Pole Starters, Series A Installation Instructions - 30072-013-16A (pdf)
- Motor Logic Solid-State Overload Relay Installation Instructions - 30072-452-39+final (pdf)
- 8502SH/8536SH Size 6 AC Magnetic Contactors and Starters, Series B, 2 & 3 Poles Installation Instructions - 30072-013-12 (pdf)
- Class 8502/8536, Type SE AC Magnetic Contactors and Starters Installation Instructions - 30072-013-01 (pdf)
- 9999SO Control Circuit Module, Types SO4 and SO5, NEMA Size 00-6 Installation Instructions - 30072-003-79 (pdf)
- AC Magnetic Contactors and Starters - 30072-013-103_01 (pdf)
