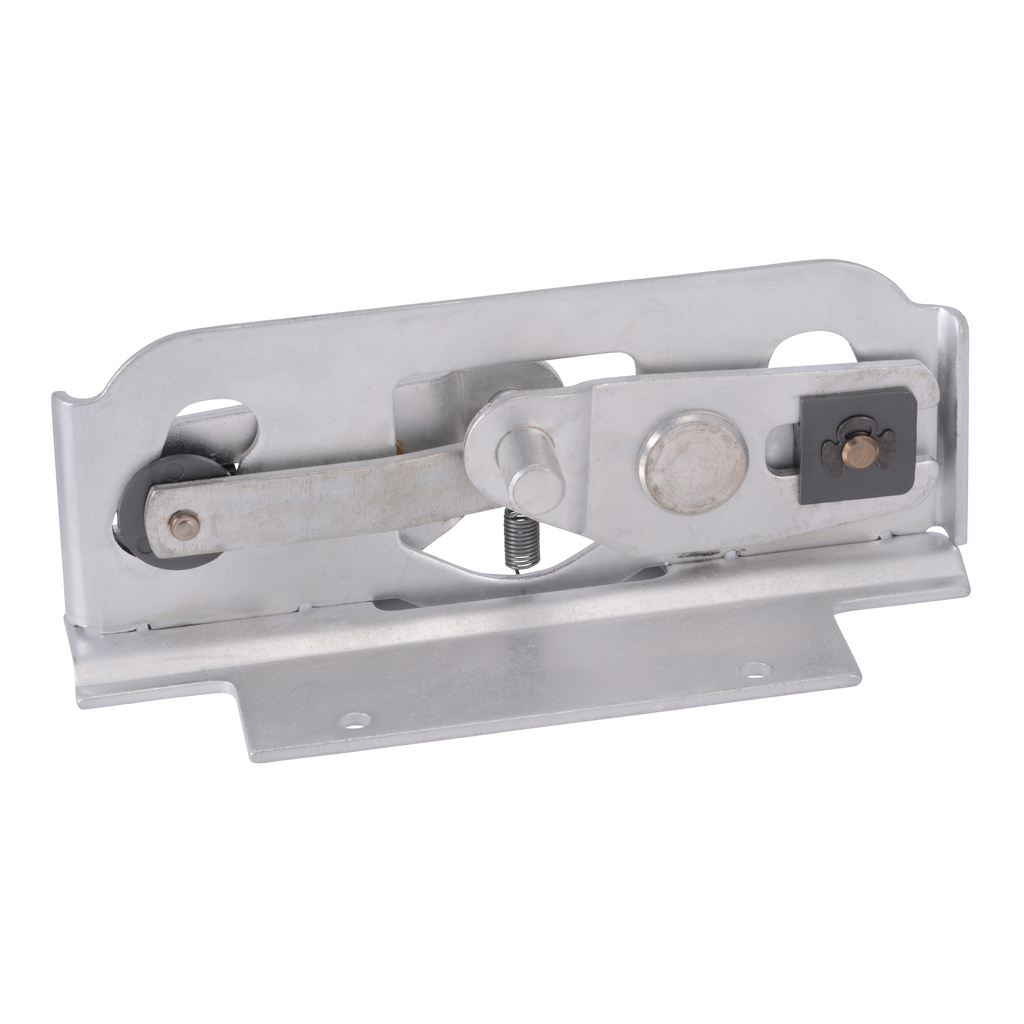

Type S reversing magnetic contactors and starters are used for starting, stopping and reversing AC motors. Type S reversing contactors and starters are availble in NEMA Sizes 00 through 7. Type S contactors or starters can be mechanically interlocked so that only one device is energized at a time. The mechanical interlock is an interference (non-jamming) type, locking at the beginning of the stroke of any starter or contactor. The mechanical interlock is separate from the mounting pan on NEMA Sizes 3 and 4. Cams on the mechanical interlocks are operated by the contact carrier of each contactor. The mechanical interlock is attached to the underside of the two contactor baseplates on NEMA Sizes 3 and 4 This mechanical interlock is for two Type S contactors mounted horizontally. The mechanical interlock can be used with two NEMA Size 3 or 4 two or three pole contactors.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | type S |
---|---|
Product Or Component Type | mechanical interlock |
Product Destination |
|
Warranty | 18 months |
Nema Size |
|
Mounting Position | horizontal |
Number Of Poles |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Under investigation |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
