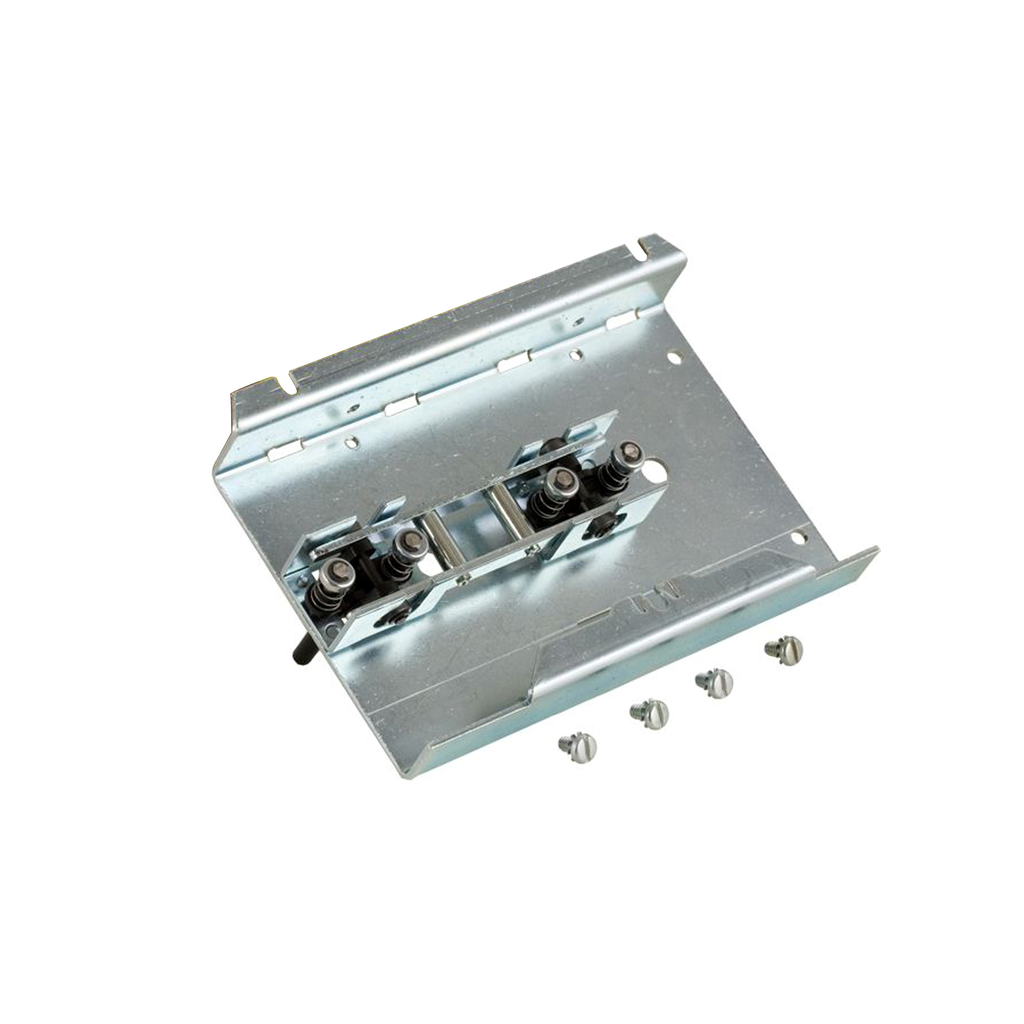

NEMA Motor Starter and contactor, Type S, mechanical interlock kit, horizontal mounting, NEMA size 00 to 1, 2 or 3 pole
Type S reversing magnetic contactors and starters are used for starting, stopping and reversing AC motors. Type S reversing contactors and starters are availble in NEMA Sizes 00 through 7. Type S contactors or starters can be mechanically interlocked so that only one device is energized at a time. The mechanical interlock is an interference (non-jamming) type, locking at the beginning of the stroke of any starter or contactor. The mechanical interlock is mounted on the underside of the reversing baseplate. This mechanical interlock is for two Type S contactors mounted horizontally. The mechanical interlock can be used with two NEMA Size 00, 0 or 1 two or three pole contactors. The 9999SM1 mechanical interlock is UL Listed and UL Component Recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | type S |
|---|---|
| Product Or Component Type | mechanical interlock |
| Product Destination |
|
| Warranty | 18 months |
| Nema Size |
|
| Mounting Position | horizontal |
| Number Of Poles | 2.3 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters (SEP 2022) - 0100CT1901_SEC-16_SEP2022 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- 9999SM Mechanical Interlock Kits for Use with NEMA Size 00, 0, and 1 Reversing or Multi-Speed Contactors and Starters Installation Instructions - 9999-286 (pdf)
