9999SC22

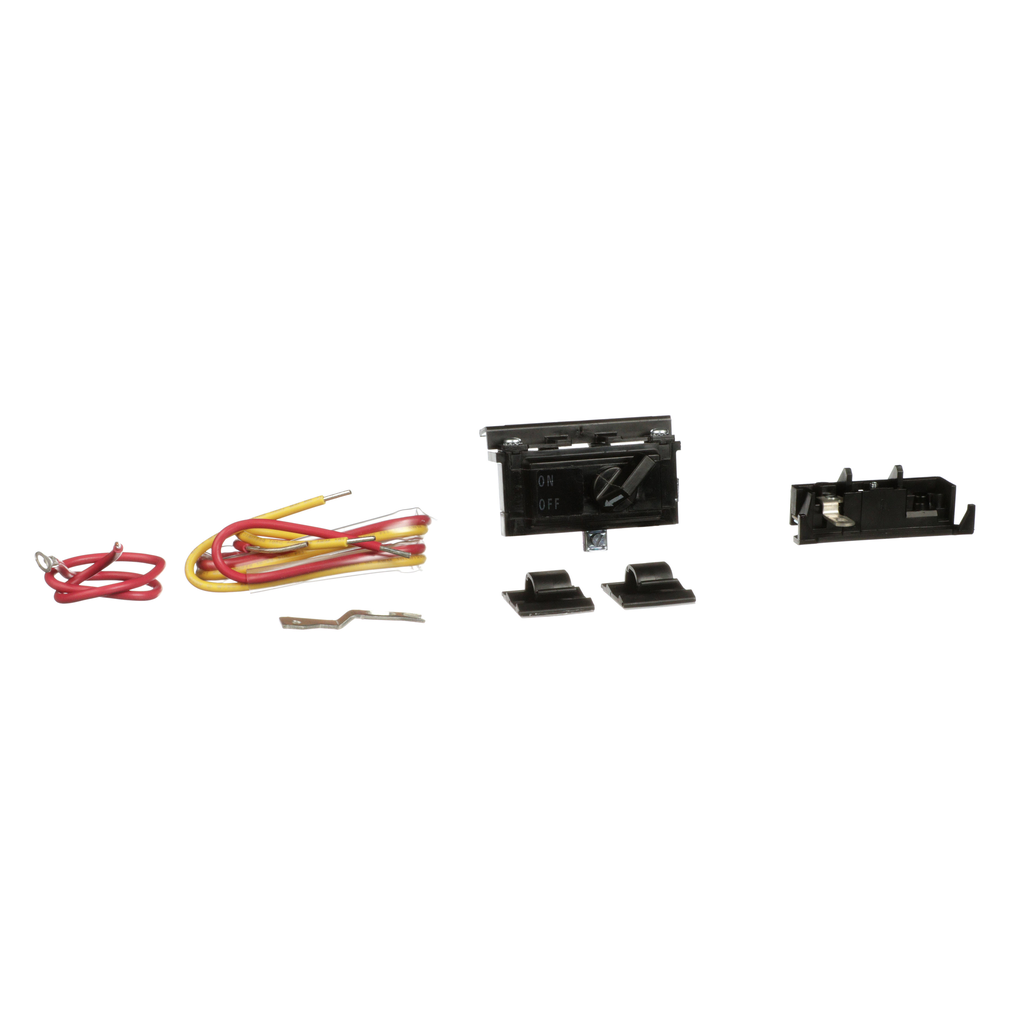

NEMA Motor Starter and contactor, Type S, on/off selector switch kit, NEMA 1
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This On Off selector switch kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The selector switch is mounted into the knockout in the enclosure cover. This selector switch kit is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | type S |
|---|---|
| Product Or Component Type | selector switch |
| Product Destination |
|
| Warranty | 18 months |
| Mounting Mode | panel-mounted |
| Nema Size |
|
| Rated Breaking Capacity |
|
| Marking | ON-OFF |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1 |
Documents
- Spec Sheet
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters (SEP 2022) - 0100CT1901_SEC-16_SEP2022 (pdf)
- Square D Lighting Contactors Catalog - 8903CT9701 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- 8502SB and 8536SB AC Magnetic Contactors and Starters Installation Instructions - 30072-013-09 (pdf)
- 8502SA and 8536SA, AC Magnetic Contactors and Starters, Size 00, Series B, 2- and 3-Pole Instruction Bulletin - 30072-013-08 (pdf)
- AC Magnetic Starters, Class 8536 Type S, Form H3, Series A, Size 2 Installation Instructions - 30072-013-24_01 (pdf)
- 9999SC22 Selector Switch Kit for Size 00-4 Contactors and Starters in Type 1 Enclosures Installation Instructions - 30072-001-36H (pdf)
