9999LB0
Overload Relay, Motor Logic, solid state, lug extender kit

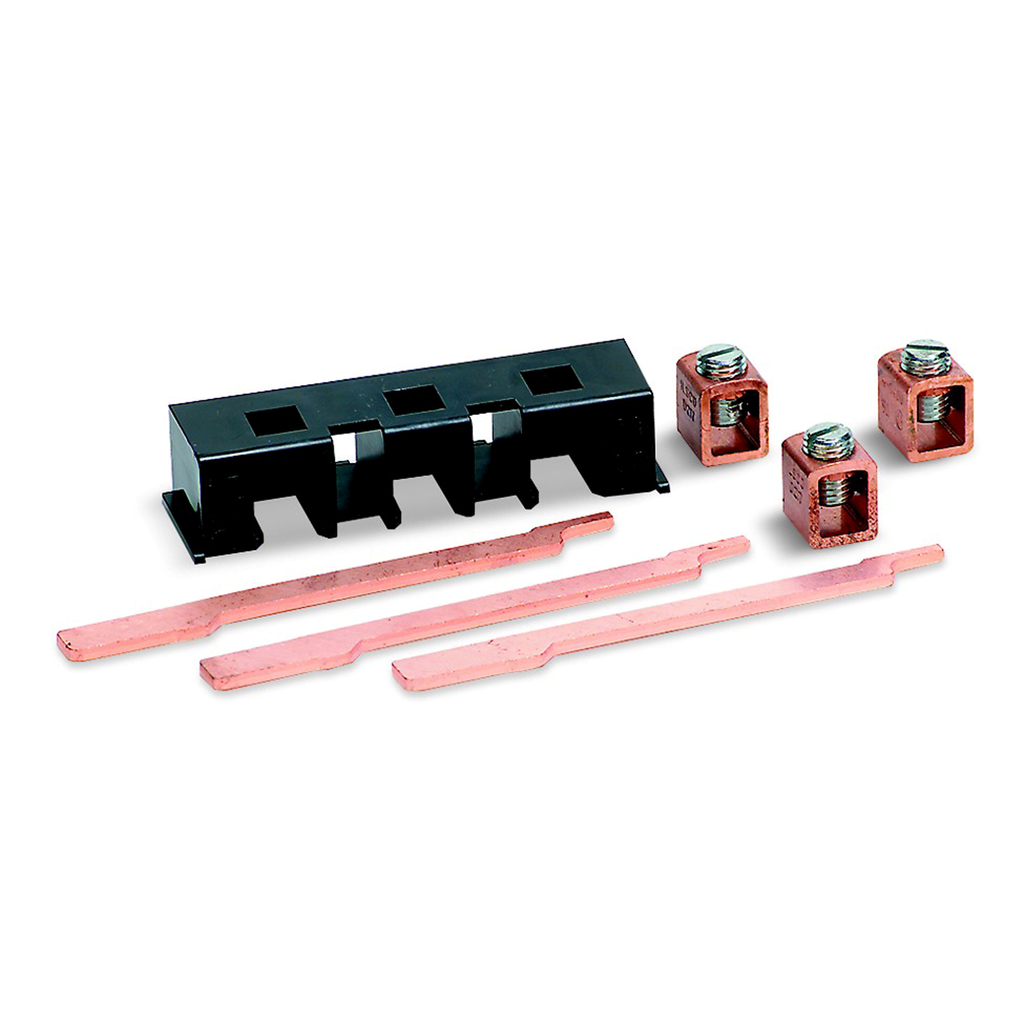

Motor Logic solid state overload relays are designed to protect 50/60 Hz, 3 phase AC motors from overload, phase unbalance, and phase loss conditions. The 9999LB0 lug extender kit is designed for retrofit NEMA Type S motor starter applications. This kit allows the lugs to be in the same location as for the 9065 melting alloy overload relay, eliminating the need for additional wire length. Lugs are used on 9065SS or SF solid state overload relays. These SSOLR are used on NEMA Size 00, 0 or 1 NEMA Type S motor starters. Kit is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Overload Type | solid state |
|---|---|
| Product Destination | overload relay |
| Range Of Product | Accessory |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Spec Sheet
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters (SEP 2022) - 0100CT1901_SEC-16_SEP2022 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- 9999LL0 Lug-Lug Kit Installation Instructions - 30072-013-34 (pdf)
- 9999LB0 Lug Extender Kit Installation Instructions - 30072-013-35A (pdf)
- Motor Logic Solid-State Overload Relay Installation Instructions - 30072-452-39+final (pdf)
