9422RQ1

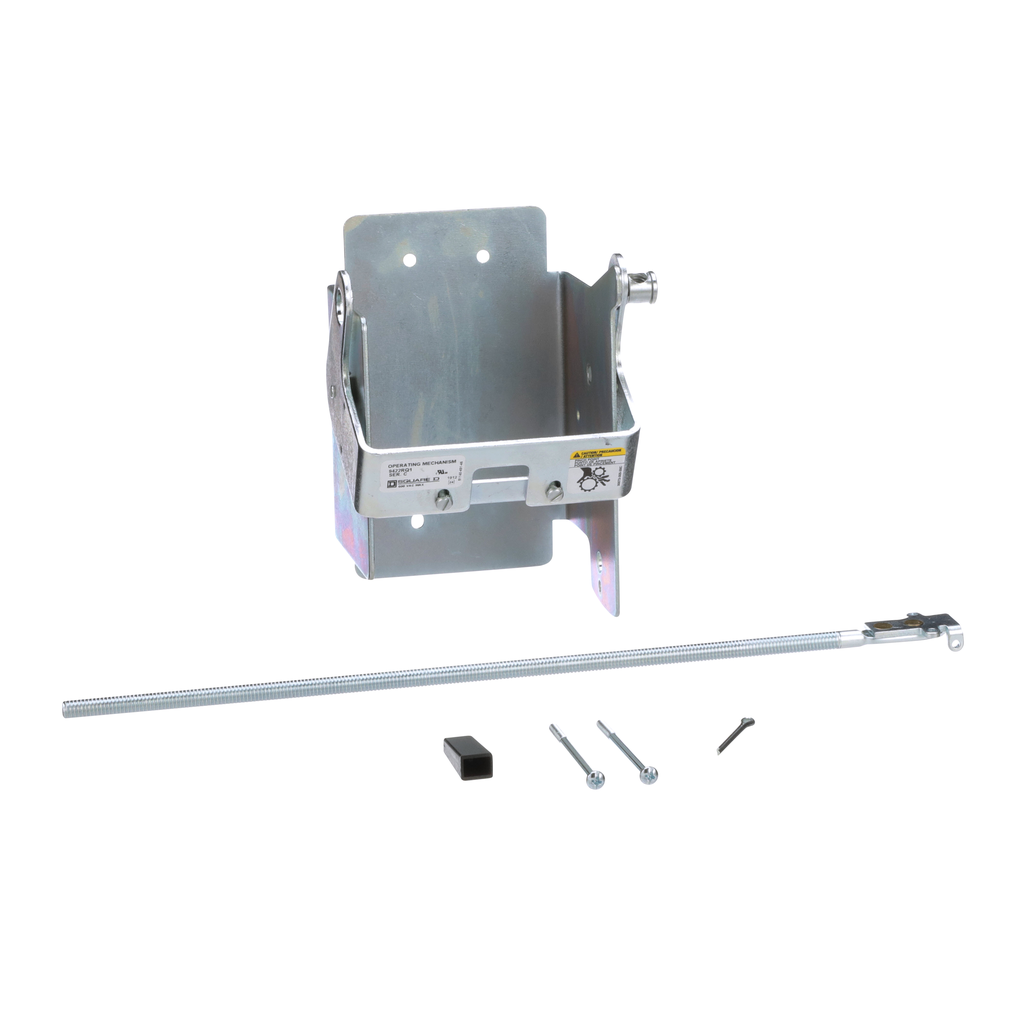

Disconnect mechanism, circuit breaker, variable depth, 150/250A, 3 pole, operator only, for PowerPacT H and J breakers
This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. Mechanism will work with PowerPact J circuit breakers. Circuit breakers is 3 pole with a frame size of 250 A. The variable depth mounting range is 5.88 to 17.75 inches. 9422A operating handle is ordered separately. Switch is UL component recognized and CSA certified. Operating mechanism is UL Component Recognized and CSA certified
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Range Of Product | 9422R |
| Provided Equipment | ordered separately |
| Circuit Breaker Name |
|
| Product Or Component Type | Circuit Breaker Mechanism |
| Product Mounting | flange rod variable depth |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
