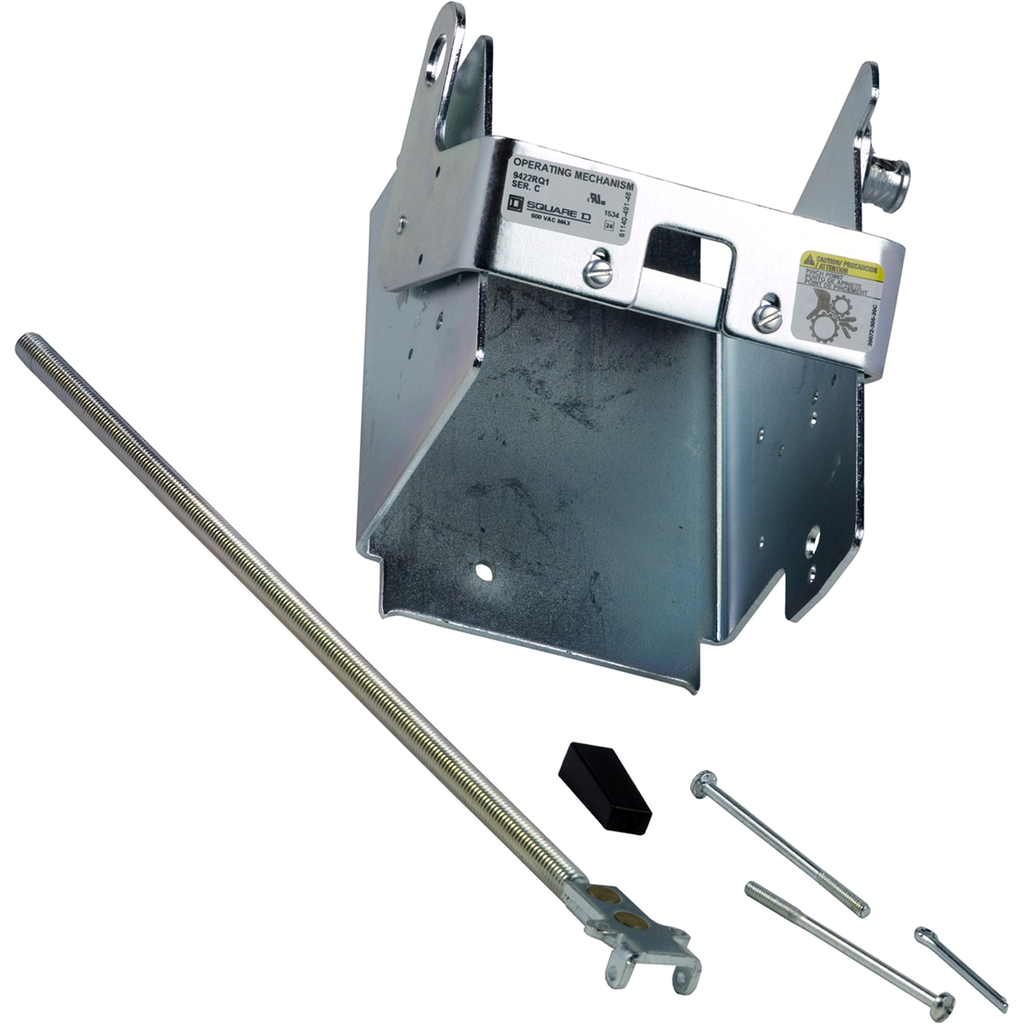

Disconnect mechanism, circuit breaker, variable depth, 125A, 2 or 3 pole, operator only, for PowerPacT B breakers
Variable depth mechanisms for use with Square D circuit breakers are designed for installation in custom built control enclosures where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 2 or 3 pole PowerPact B circuit breaker with a 125A frame size. This mechanism has a variable depth of 5.88 to 17.75 inches. Handle mechanism must be ordered separately. A 9422A1 or a 9422A2 handle mechanisms is normally used Operating mechanism is UL Component Recognized and CSA certified Operating mechanism is UL Component Recognized and CSA certified
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 9422R |
|---|---|
| Circuit Breaker Name |
|
| Product Or Component Type | Circuit Breaker Mechanism |
| Product Mounting | flange rod variable depth |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches (FEB 2021) - 0100CT1901_SEC-08_FEB-2021 (pdf)
- PowerPacT B-Frame Variable Depth Operating Mechanism - Installation Instructions - NVE52882-03 (pdf)
