9422A1Y

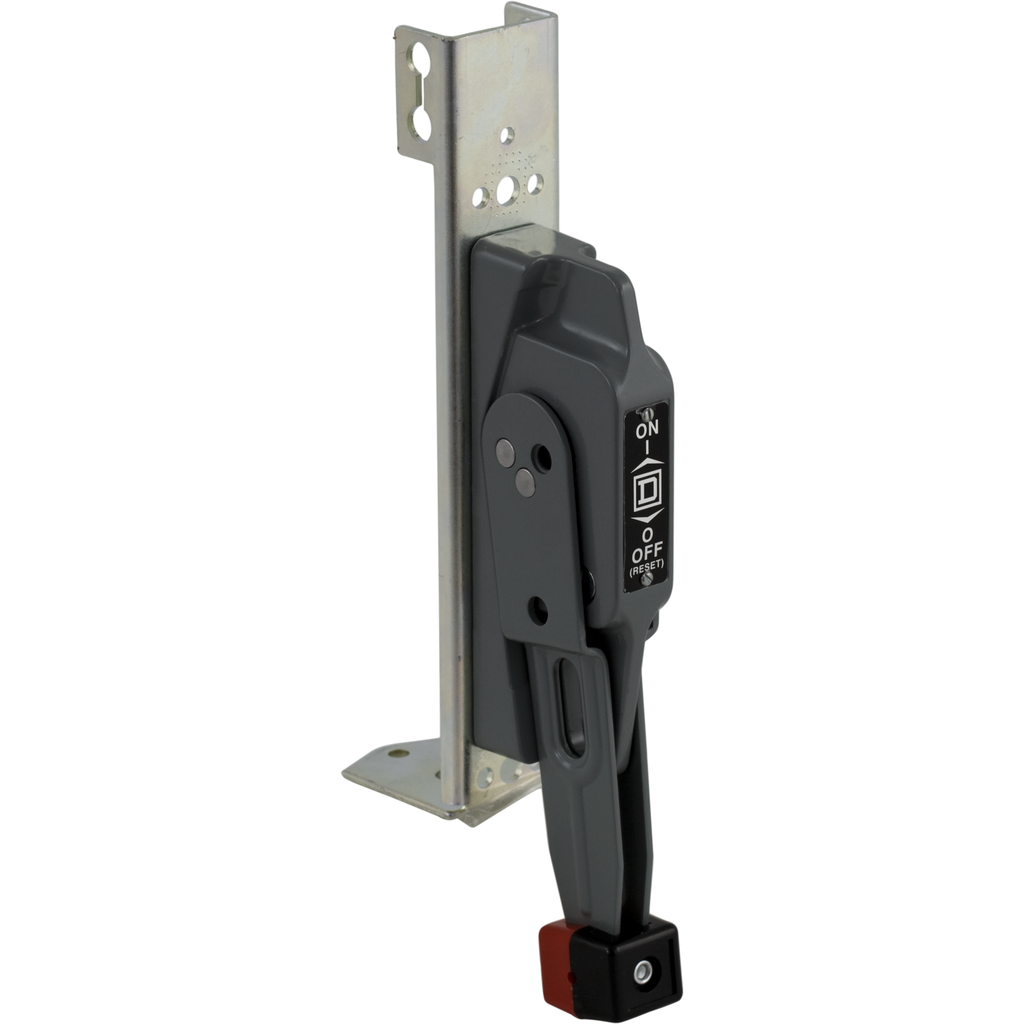

Operating mechanism, flange mount, handle, right or left hand mounting, 6 inch long red handle, NEMA 1,3, 3R, 4 and 12 enclosure
Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is used with 30A to 200A, 9422 switches and all circuit breaker mechanisms. Handle is suitable for right or left hand flange mounting. This handle has a yellow base with a gray handle and a red knob. The handle is 6 inches long. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle mechanism is UL Component Recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination |
|
|---|---|
| Product Or Component Type | Handle Mechanism |
| Warranty | 18 months |
| Product Destination |
|
| Product Compatibility | NEMA 1/3/3R/4/12 enclosures |
| Length | 6 in |
| Specificity Of Operator | variable depth |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
