9421LK1

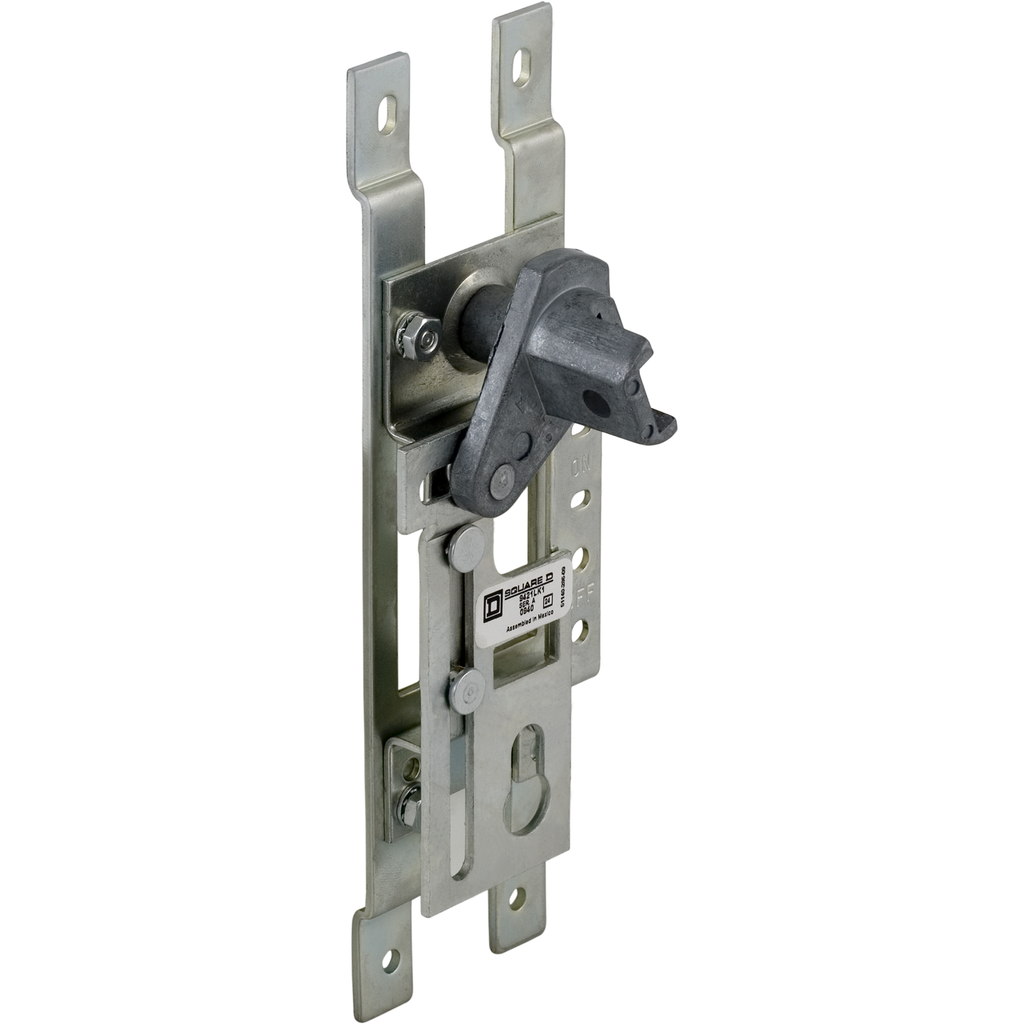

Circuit Breaker Mechanism, rotary handle, 250A operating mechanism, for 2 or 3 pole KAL, KCL and KHL circuit breakers
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with KAL, KCL and KHL circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 9421L |
|---|---|
| Circuit Breaker Name | KAL/KCL/KHL 250 A |
| Product Or Component Type | Operating Mechanism |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- 9421L Door Mounted Operating Mechanisms Installation Instructions - 50006-017-02G (pdf)
- Class 9421 Type L Door Mounted Operating Mechanism Installation Instructions - 50006-309-01 (pdf)
- Supplemental Catalog 15: Operating Mechanisms and Disconnect Switches (2019) - SD_0100CT1902_SEC-15 (pdf)
