9421LHP48

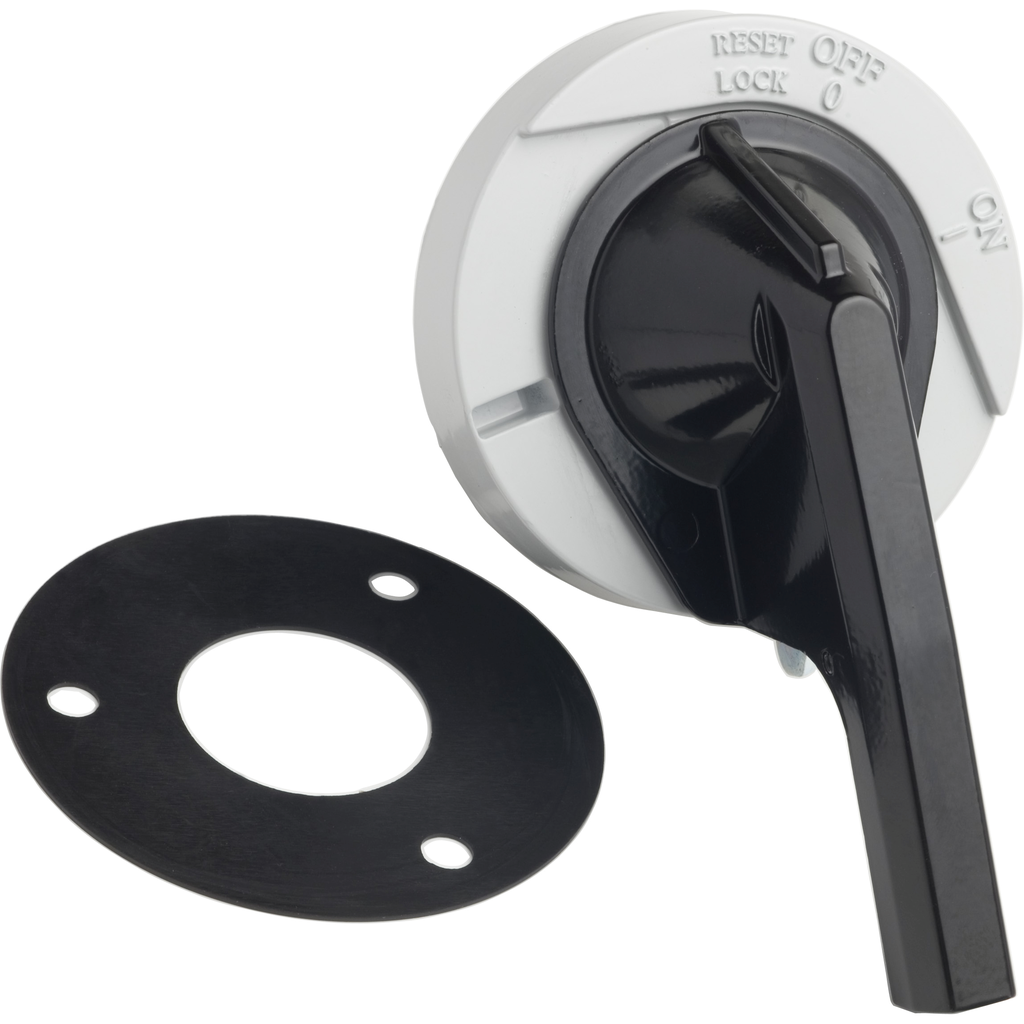

Circuit Breaker Mechanism, rotary handle, 8 inch handle assembly, NEMA 3/4, for PowerPact M and P circuit breakers
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This handle assembly is for NEMA 3 and 4 enclosures. The handle assembly has a painted 8 inch handle. The shaft mounting depth is 7.2in to 11.625in. This product complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | Handle Assembly |
|---|---|
| Warranty | 18 months |
| Product Destination | 9421LW7 operating mechanism |
| Surface Finish | painted Black |
| Product Compatibility | NEMA 1/3R/4/12 enclosure |
| Length | 8 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
