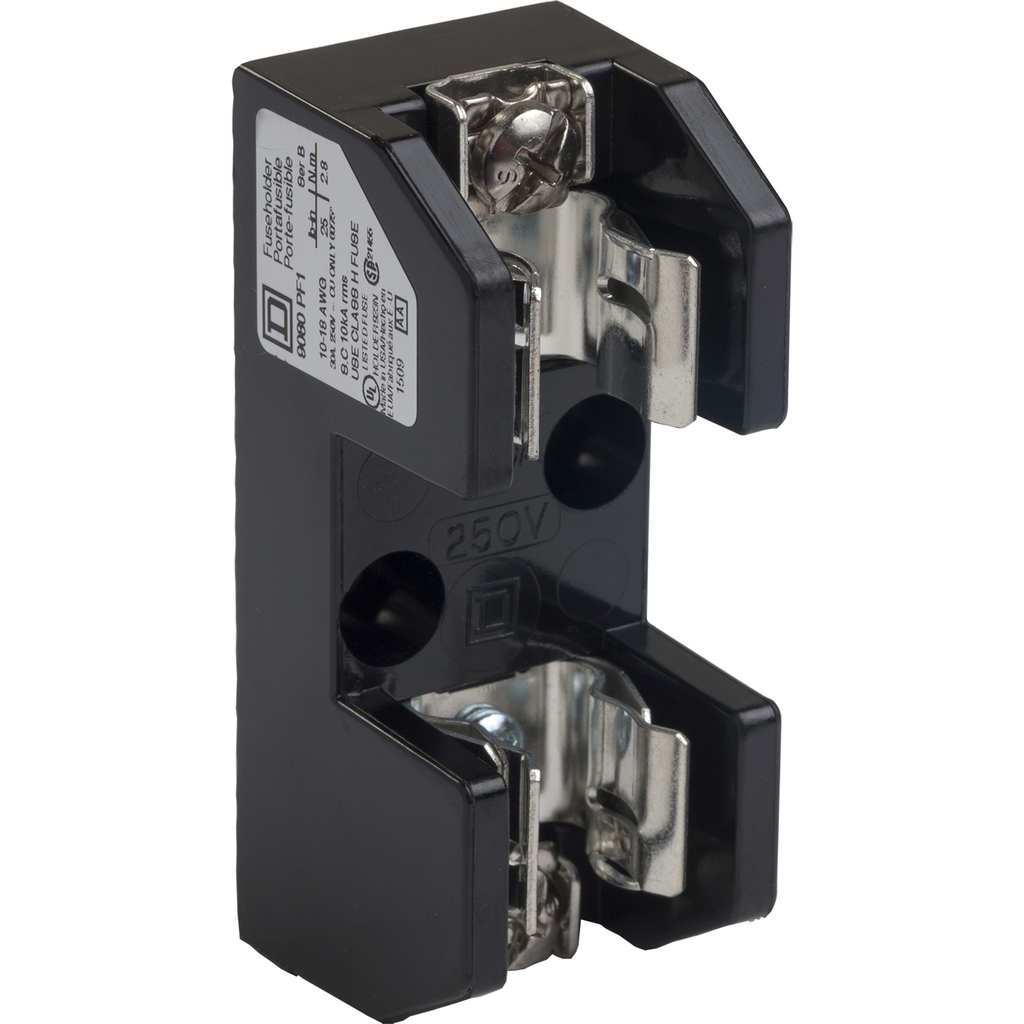

9080PF1
Terminal block, Linergy, fuse holder, Class H or K, 30A, 250 V, 1 pole
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 amperes. This one pole fuse holder will accept class H and class k fuses. The rating of the fuse can be up to 30 amperes with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 ampere. This fuse holder is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 9080FB |
|---|---|
| Product Or Component Type | fuse holder |
| Warranty | 18 months |
| Product Certifications |
|
| Wire Stripping Length | 0.4375 in |
| Fuse Size | 0.5625 x 2 in |
| [Ics] Rated Service Breaking Capacity | 10 kA UL 512 |
| Height | 3 in |
| Ambient Air Temperature For Operation | -40-257 °F |
| Mounting Support | surface mount |
| Fuse Type | H and K |
| Material | thermoplastic block |
| Electrical Connection | pressure wire clamp |
| Line Rated Current | 30 A |
| Awg Gauge | AWG 18...AWG 10 copper or aluminium |
| Width | 1.12 in |
| Depth | 1.38 in |
| Connections - Terminals | screw terminals 25 lbf.in AWG 14...AWG 10 copper |
| Number Of Poles | 1 |
| [Ue] Rated Operational Voltage | <= 250 V AC/DC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
