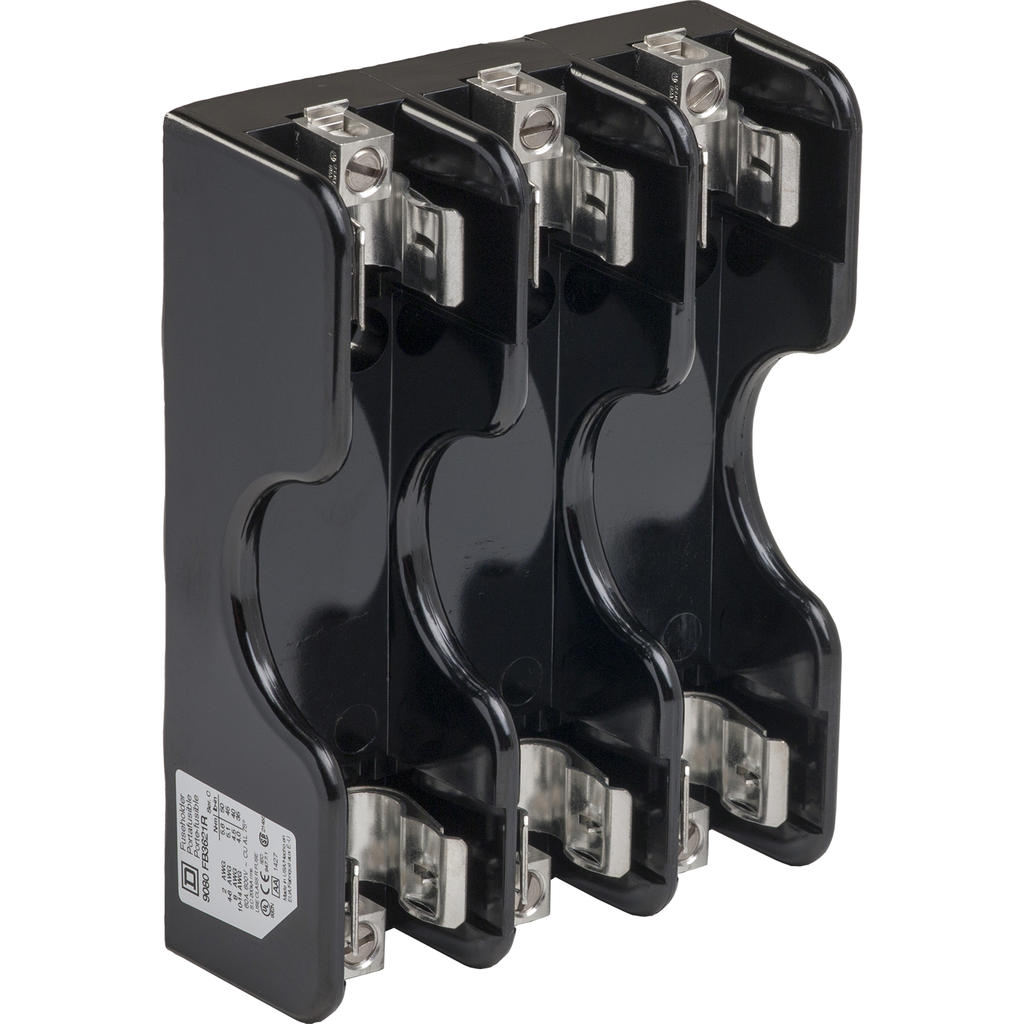

Terminal block, Linergy, fuse holder, Class R, 60A, 600 V, 3 pole
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder will accept class R fuses. The rating of the fuse can be up to 60 Amps with a 600 V maximum rating. The box lug connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of general purpose phenolic. AIC Rating in accordance with UL512 is 200,000 Amp. This fuse holder is UL listed and CSA certified. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 9080FB |
|---|---|
| Product Or Component Type | fuse holder |
| Warranty | 18 months |
| Product Certifications |
|
| Wire Stripping Length | 0.5625 in |
| Fuse Size | 1.0625 x 5.5 in |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Ambient Air Temperature For Operation | -40-302 °F |
| Height | 6.75 in |
| Mounting Support | surface mount |
| Fuse Type | R |
| Material | phenolic block |
| Electrical Connection | box lugs |
| Line Rated Current | 60 A |
| Awg Gauge | AWG 14...AWG 2 copper or aluminium |
| Width | 5.08 in |
| Depth | 2.12 in |
| Connections - Terminals |
|
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | <= 600 V AC/DC |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
