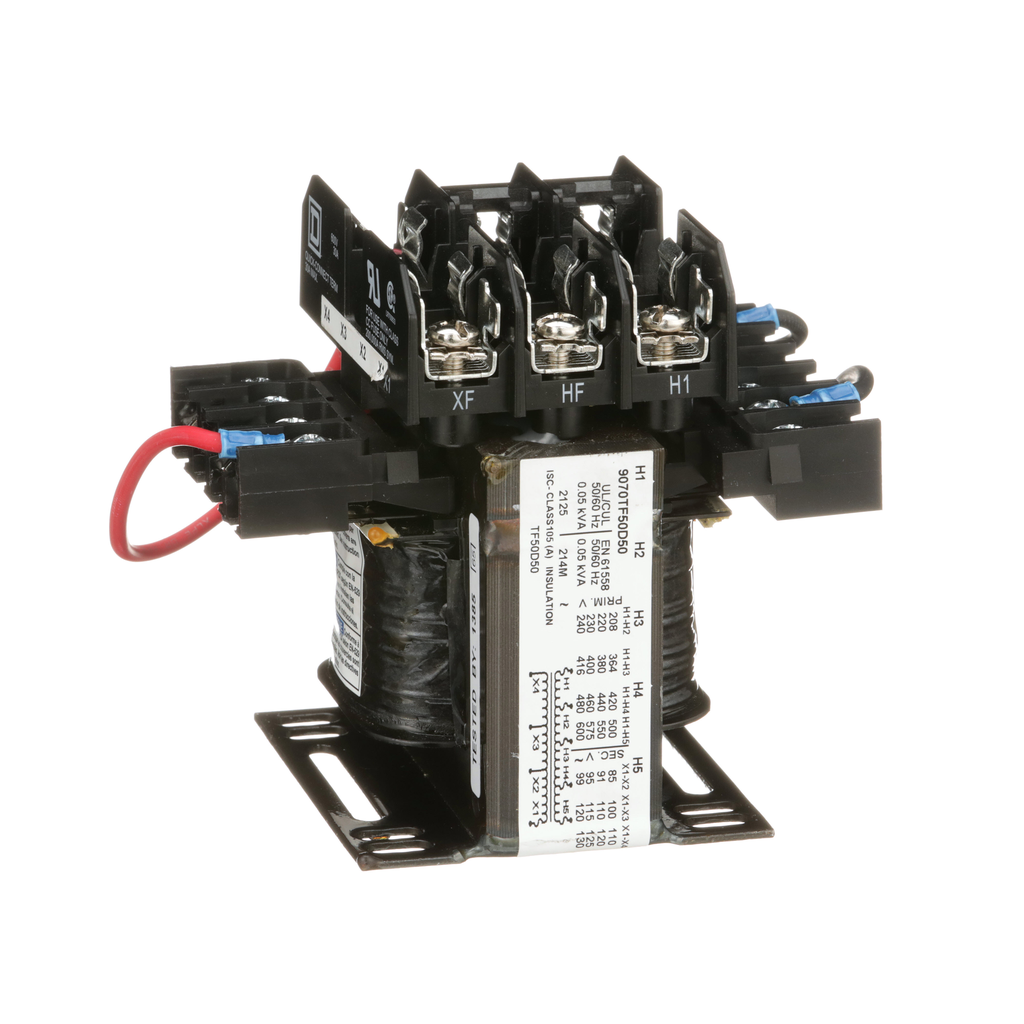

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 50VA and is single phase. It has a 208/360/416/520 V primary voltage and 85/104/115 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 4.5 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC23. This transformer complies to UL, CE & CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | TF |
---|---|
Product Or Component Type | Industrial Control Transformer |
Warranty | 18 months |
Height | 4.19 in |
Fuse Type | 0.41 x 1.50 in CC top |
Temperature Rise | 55 °C |
Material | copper winding |
Electrical Connection | screw clamp terminals |
Rated Power In Va |
|
Width | 3.38 in |
Depth | 4.43 in |
Product Compatibility | FSC23 |
Primary Voltage |
|
Phase | 1 phase |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308008EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
Insulation Temperature | 105 °C |
