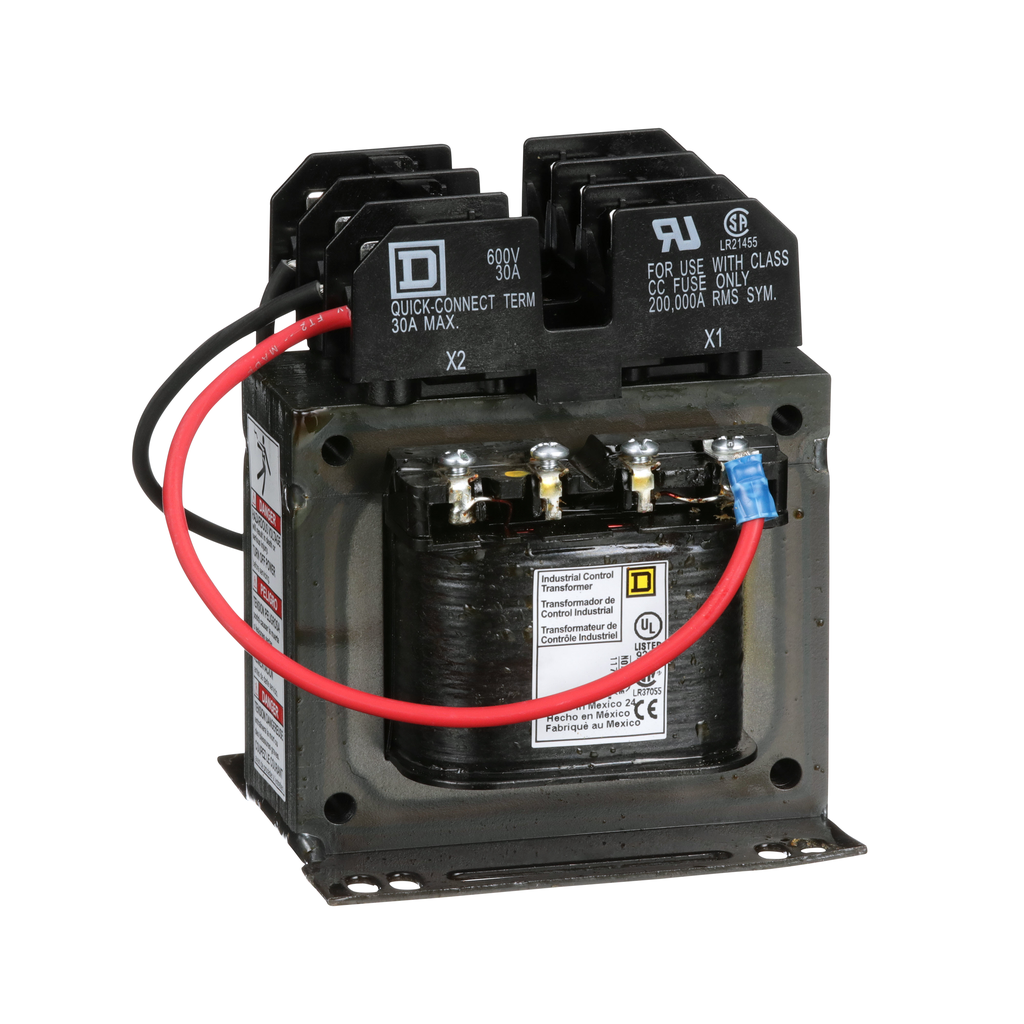

9070TF150D20 – Industrial control transformer, Type TF, 1 phase, 150VA, 208/230/460V primary, 115V secondary, 50/60Hz
9070TF150D20
Industrial control transformer, Type TF, 1 phase, 150VA, 208/230/460V primary, 115V secondary, 50/60Hz

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 150VA and is 1 phase. This transformer has a 208/230/460V primary voltage and 115V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 4.5 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product TF
Product Or Component Type Industrial Control Transformer
Warranty 18 months
Height 4.5 in
Fuse Type 0.41 x 1.50 in CC top
Temperature Rise 55 °C
Material copper winding
Electrical Connection screw clamp terminals
Rated Power In Va
  • 150 VA UL
  • 150 VA CSA
  • 150 VA NOM
  • 150 VA CE
Width 3.75 in
Depth 3.59 in
Product Compatibility FSC1
Primary Voltage 208/230/460 V 115 V
Phase 1 phase
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1308008EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Eu Rohs Directive Compliant
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications
  • CSA file LR37055 guide 184-N-90
  • UL listed file E61239
Nema Degree Of Protection not rated (open device)
Insulation Temperature 105 °C
