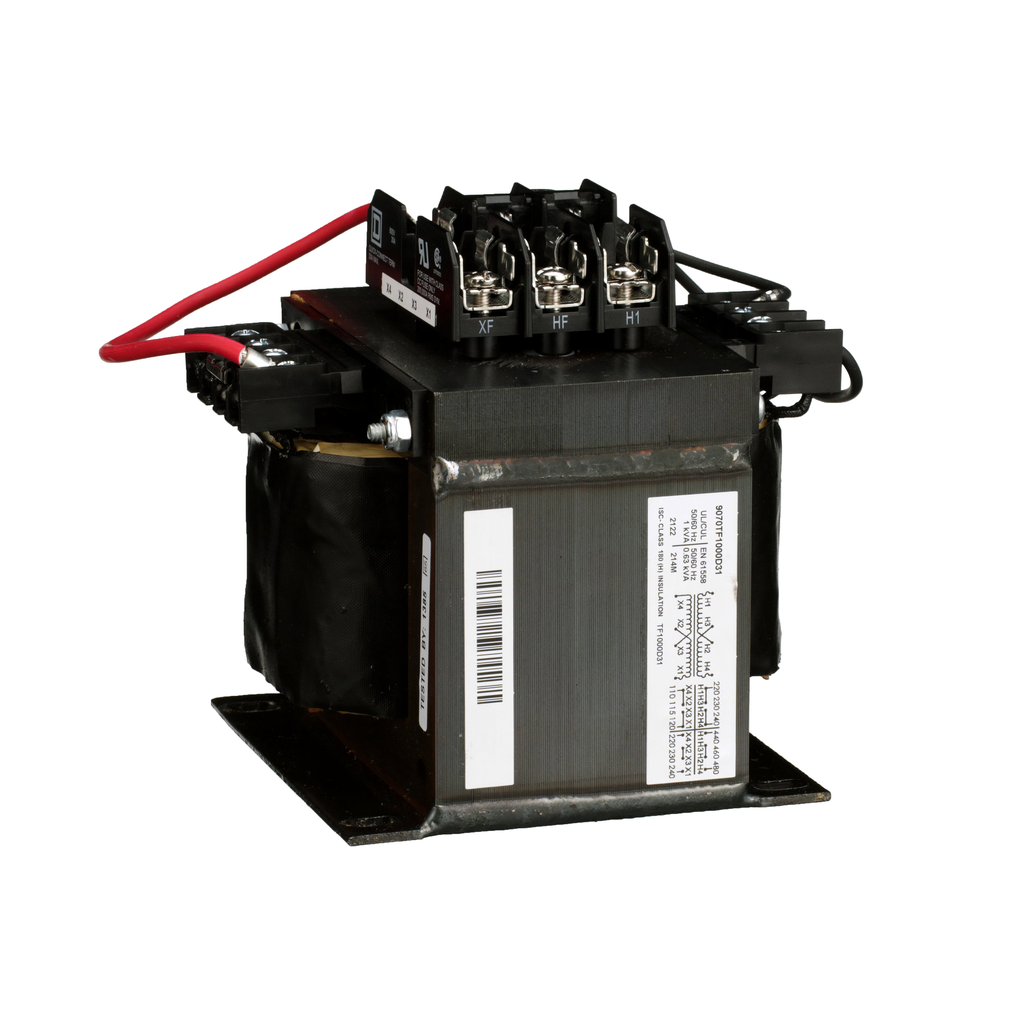

Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120/240V secondary, 50/60Hz
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 1000VA transformer designed for 240x480VAC primary with 120/240VAC secondary. (The unit also supports 230x460VAC to 115/230VAC and 220x440VAC to 110/220VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TF |
|---|---|
| Product Or Component Type | Industrial Control Transformer |
| Warranty | 18 months |
| Height | 5.8 in |
| Fuse Type | 0.41 x 1.50 in CC top |
| Temperature Rise | 115 °C |
| Material | copper winding |
| Electrical Connection | screw clamp terminals |
| Rated Power In Va |
|
| Width | 5.25 in |
| Depth | 6.3 in |
| Product Compatibility | FSC2 |
| Primary Voltage |
|
| Phase | 1 phase |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 180 °C |
