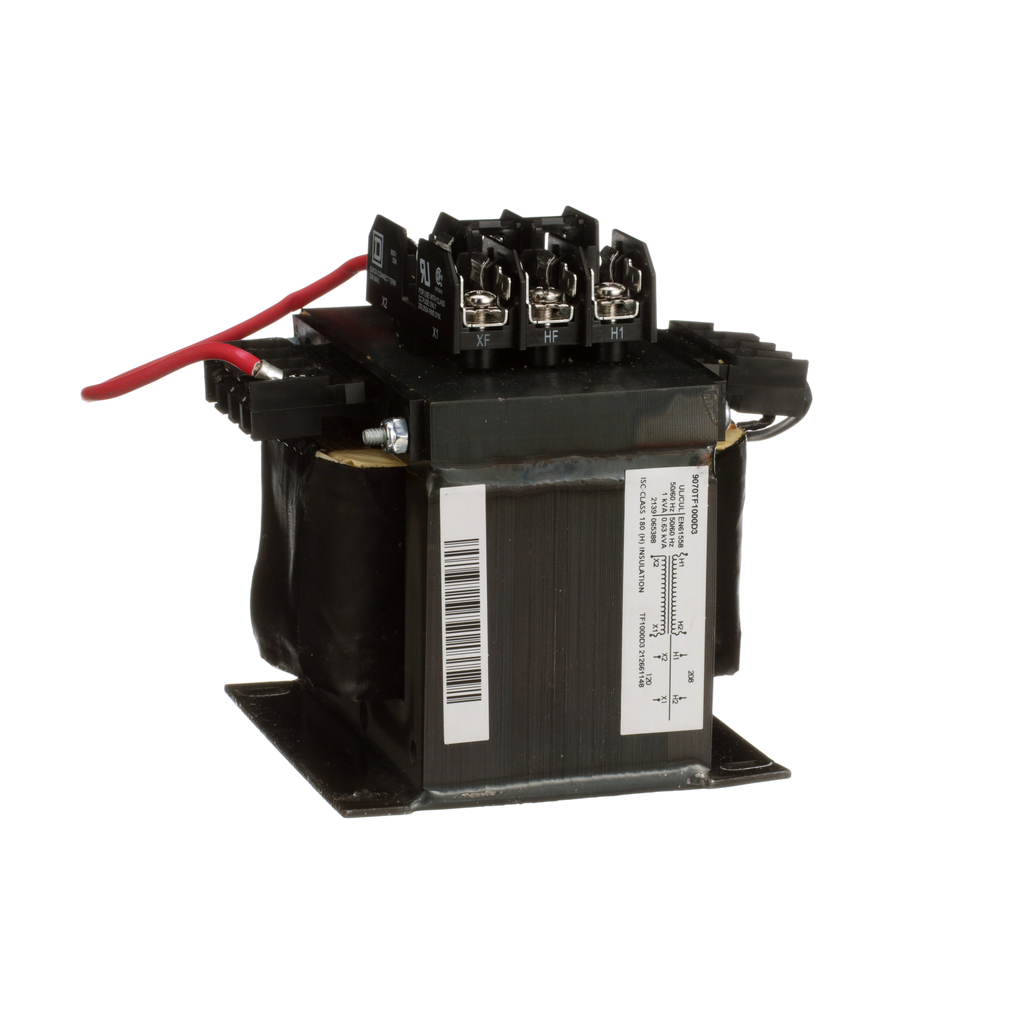

Industrial control transformer, Type TF, 1 phase, 1000VA, 208V primary, 120V secondary, 50/60Hz
Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 1000 VA. This transformer has a primary voltages such as 208 V and a secondary voltage of 120 V with a temperature rise of 115 °C. The dimensions for this product are 5.8 in (H), 5.25 in (W), 6.3 in (D). This product is compatable with FSC2. This product complys to UL, CSA & NOM standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TF |
|---|---|
| Product Or Component Type | Industrial Control Transformer |
| Warranty | 18 months |
| Height | 5.8 in |
| Fuse Type | 0.41 x 1.50 in CC top |
| Temperature Rise | 115 °C |
| Material | copper winding |
| Electrical Connection | screw clamp terminals |
| Rated Power In Va |
|
| Width | 5.25 in |
| Depth | 6.3 in |
| Product Compatibility | FSC2 |
| Primary Voltage | 208 V 120 V |
| Phase | 1 phase |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 180 °C |
