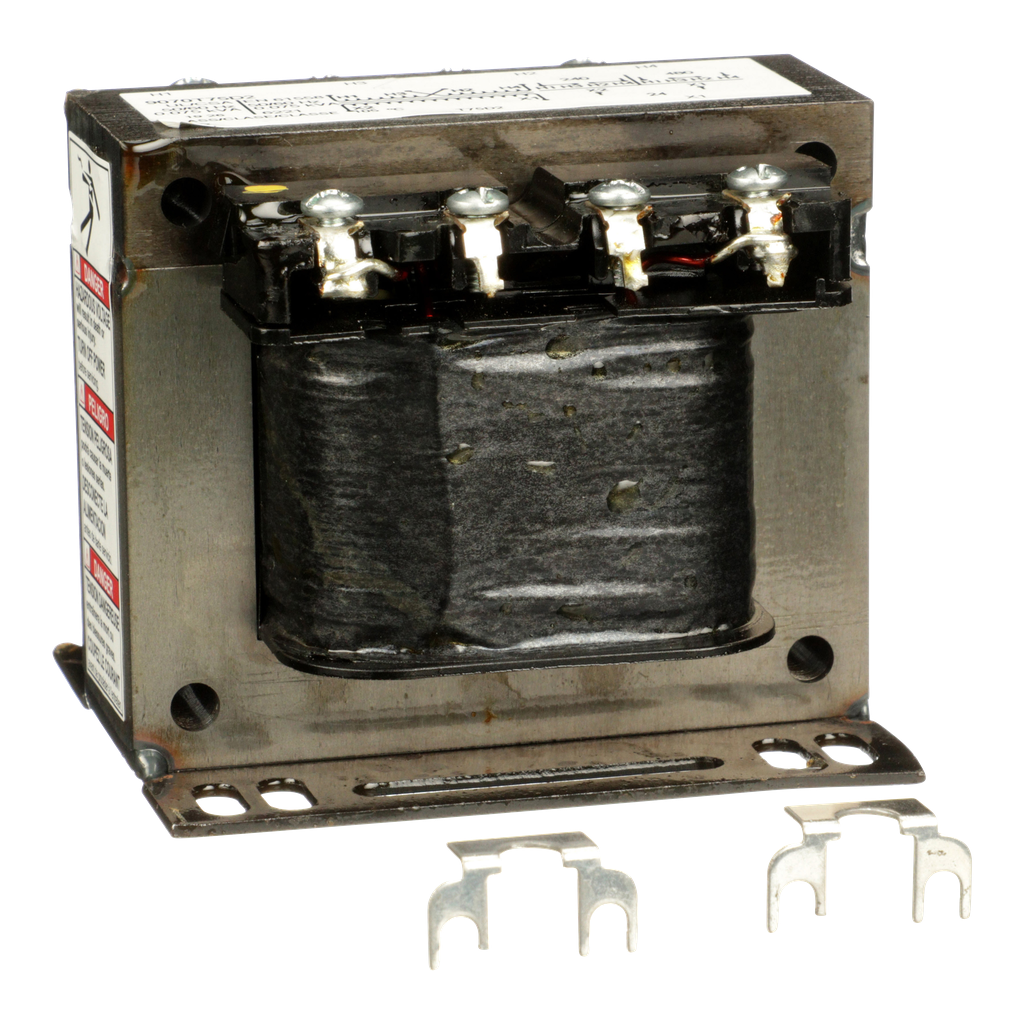

Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise
Type T is our most popular and complete line of control transformers that Schneider Electric These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 75VA and is single phase. It has a 240/480 V primary voltage and 24 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 2.89 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | T |
|---|---|
| Product Or Component Type | Industrial Control Transformer |
| Rated Power In Va |
|
| Warranty | 10 Years |
| Height | 2.89 in |
| Temperature Rise | 55 °C |
| Phase | 1 phase |
| Material | copper winding |
| Electrical Connection | screw clamp terminals |
| Width | 3.38 in |
| Depth | 3.34 in |
| Product Compatibility | FSC1 |
| Primary Voltage | 240 x 480 V 24 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 105 °C |
