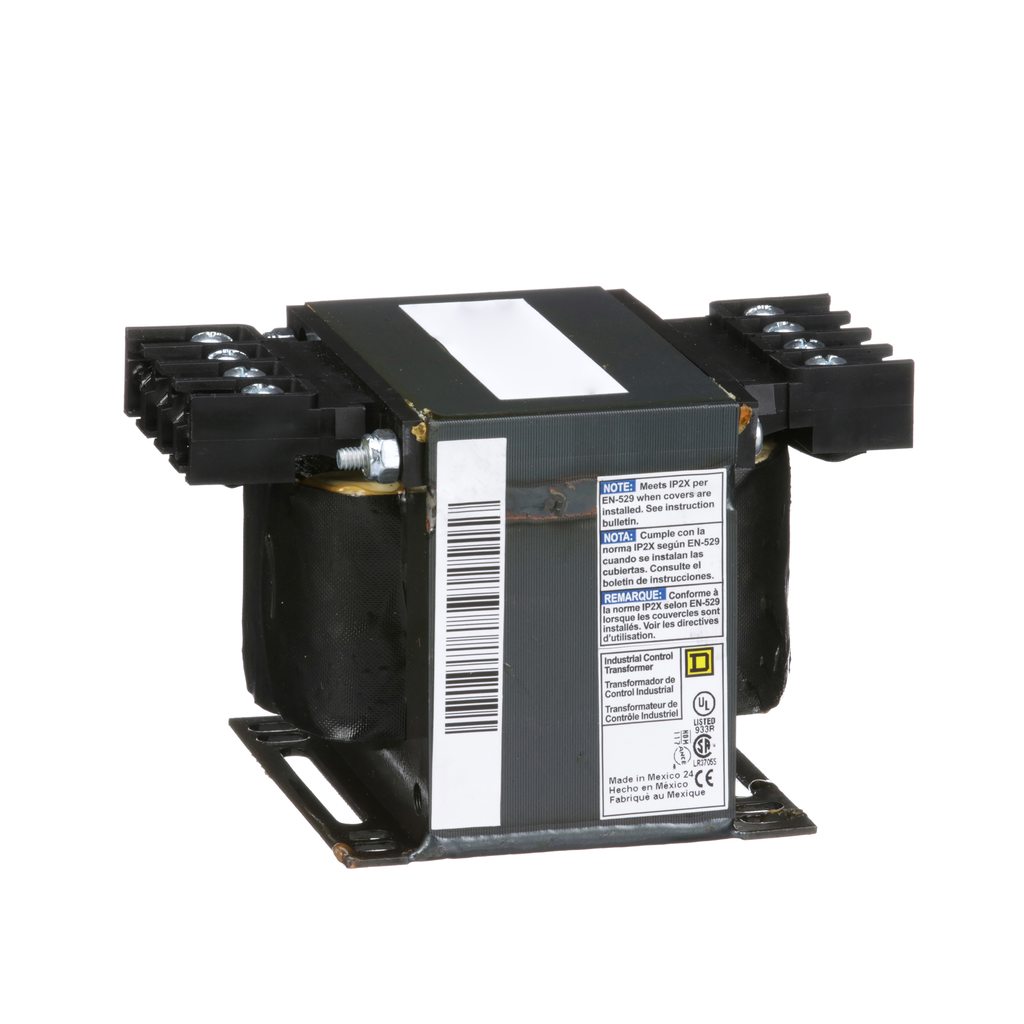

Transformer, Type T, industrial control, 250VA, 1 phase, 208V primary, 24V secondary, 80C rise
The Type T units are designed for the global market and are the best choice when size and cost are of concern. for the global market and are the best choice when size and cost are of concern. This is our most popular and complete offering of industrial control transformers. The following features are included with the Type T transformers sich as they are rated 50/60 Hz. They have customer installable accessories such as covers, fuse blocks and fuse clips. The Type T transformers are designed with various temperature classes. This Industrial Control Transformer is 1 phase and has a rated power of 250 VA. This transformer has a primary voltages of 208 V and a secondary voltage of 24 V with a temperature rise of 80 °C. The dimensions forThis product are 3.2 in (H), 3.75 in (W), 5.3 in (D). This product is compatable with FSC2. This product complys to UL listed & CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | T |
|---|---|
| Product Or Component Type | Industrial Control Transformer |
| Rated Power In Va |
|
| Warranty | 10 Years |
| Height | 3.2 in |
| Temperature Rise | 80 °C |
| Material | copper winding |
| Electrical Connection | screw clamp terminals |
| Width | 3.75 in |
| Depth | 5.3 in |
| Product Compatibility | FSC2 |
| Primary Voltage | 208 V 24 V |
| Phase | 1 phase |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 130 °C |
