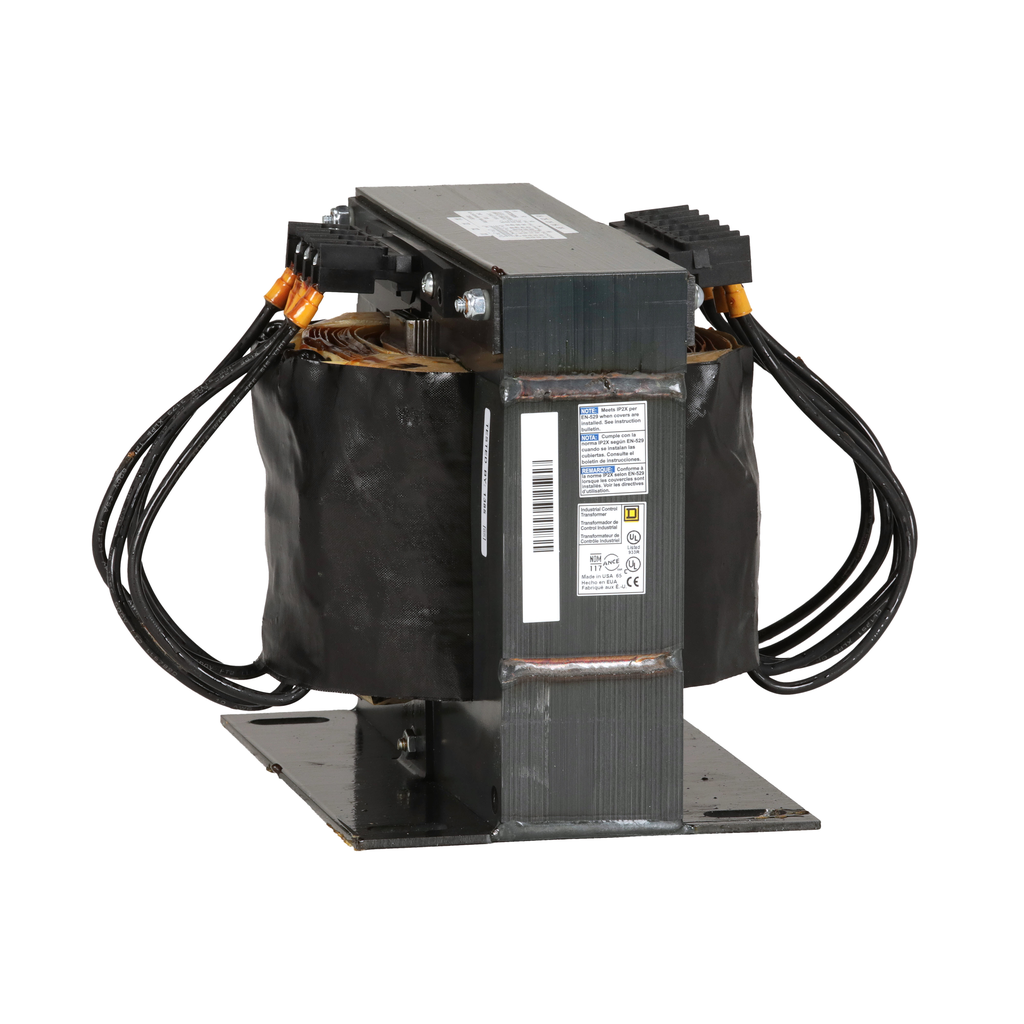

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type T is a single phase 2000VA transformer designed for 240/416/480/600VAC primary with 99/120/130VAC secondary, as well as 230/400/460/575VAC to 95/115/125VAC, 220/380/440/550VAC to 90/110/120VAC, and 208/360/416/520VAC to 85/104/115VAC. It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | T |
---|---|
Product Or Component Type | Industrial Control Transformer |
Rated Power In Va |
|
Warranty | 18 months |
Height | 7.63 in |
Temperature Rise | 115 °C |
Electrical Connection | screw clamp terminals |
Width | 9 in |
Depth | 6.38 in |
Product Compatibility | FSC23 |
Primary Voltage |
|
Phase | 1 phase |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308008EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
Insulation Temperature | 180 °C |
