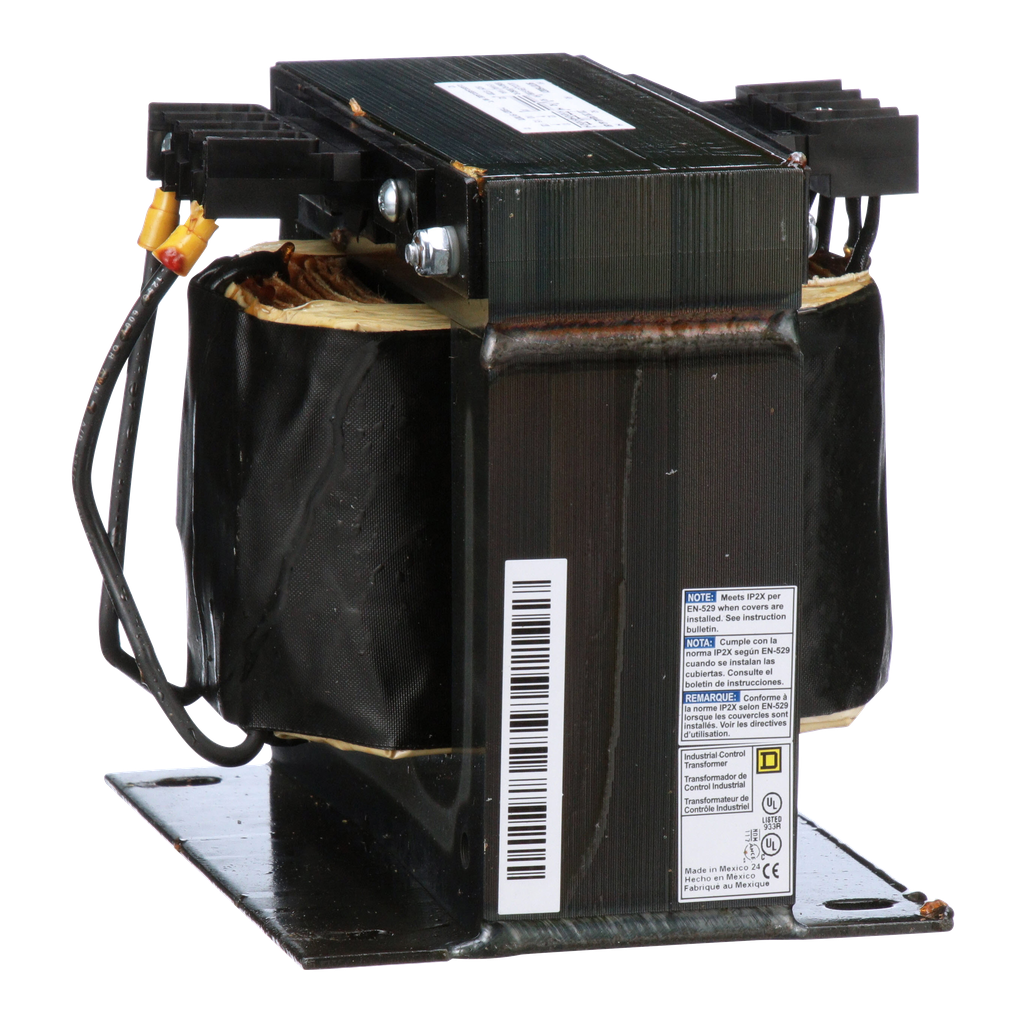

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 1500VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. This transformer complies to UL, CE & CSA standards. This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | T |
---|---|
Product Or Component Type | Industrial Control Transformer |
Rated Power In Va |
|
Warranty | 10 Years |
Height | 6.17 in |
Temperature Rise | 115 °C |
Phase | 1 phase |
Material | copper winding |
Electrical Connection | screw clamp terminals |
Width | 7.06 in |
Depth | 5.92 in |
Product Compatibility | FSC2 |
Primary Voltage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308008EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
Insulation Temperature | 180 °C |
