9070SK3000G2D1E23P1

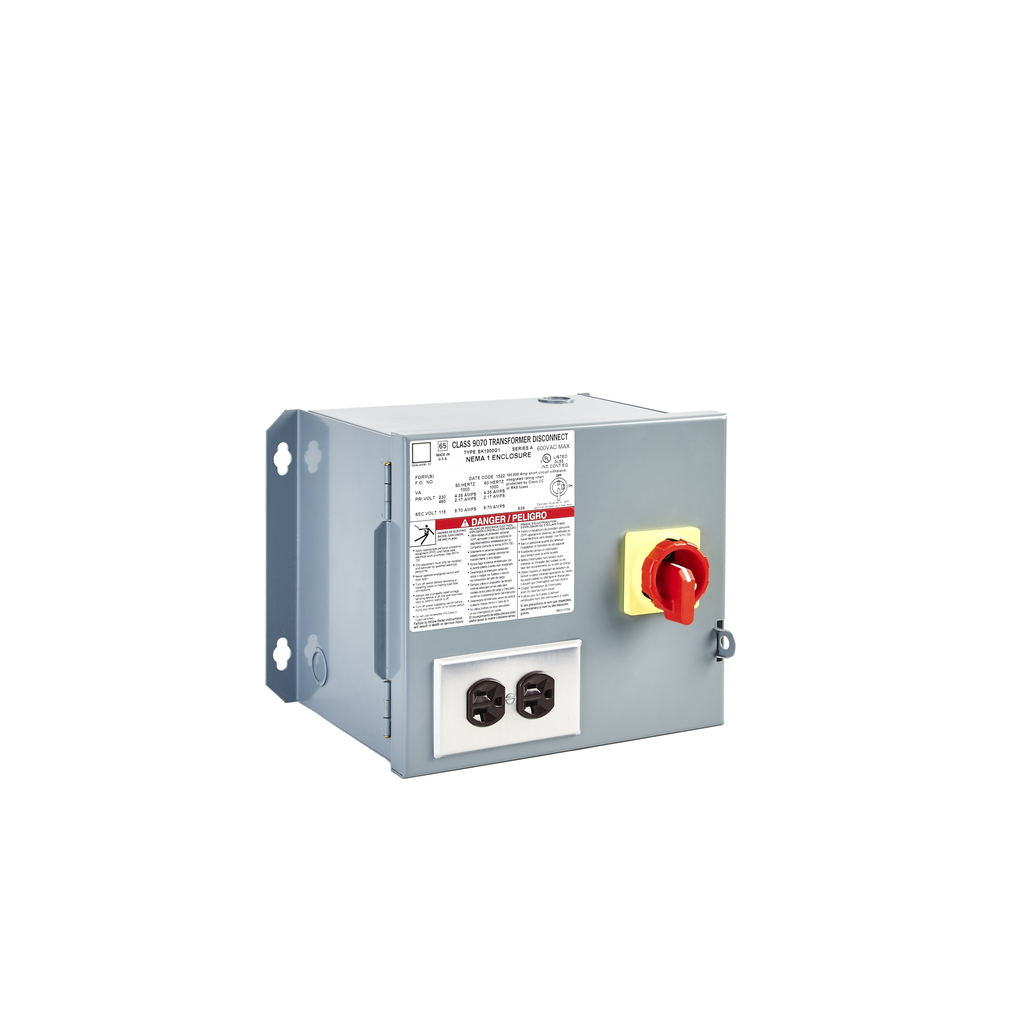

Transformer Control Disconnect 3kVA
Specifications
| Range Of Product | Square D |
|---|---|
| Enclosure Type | standard environment enclosure indoor |
| Provided Equipment | Vario V3 switch-disconnector |
| Device Application | power supply |
| Device Short Name | SK |
| Warranty | 18 months |
| Primary Voltage | 240 x 480 V |
| Rated Voltage |
|
| Height | 13.4 in |
| Phase | 1 phase |
| Secondary Voltage | 120 V |
| Device Mounting | surface |
| Temperature Rise | 115 °C |
| Material | copper winding |
| Mounting Support | panel |
| Width | 14.8 in |
| Electrical Connection | screw clamp terminal |
| Depth | 12.21 in |
| Design | standard |
| Rated Power In Va | 3000 VA |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1 |
| Insulation Temperature | 180 °C |
