9070KL300D3
Transformer, Type KL, industrial control, 300VA, 1 phase, 208V primary, 120V secondary, 80C rise

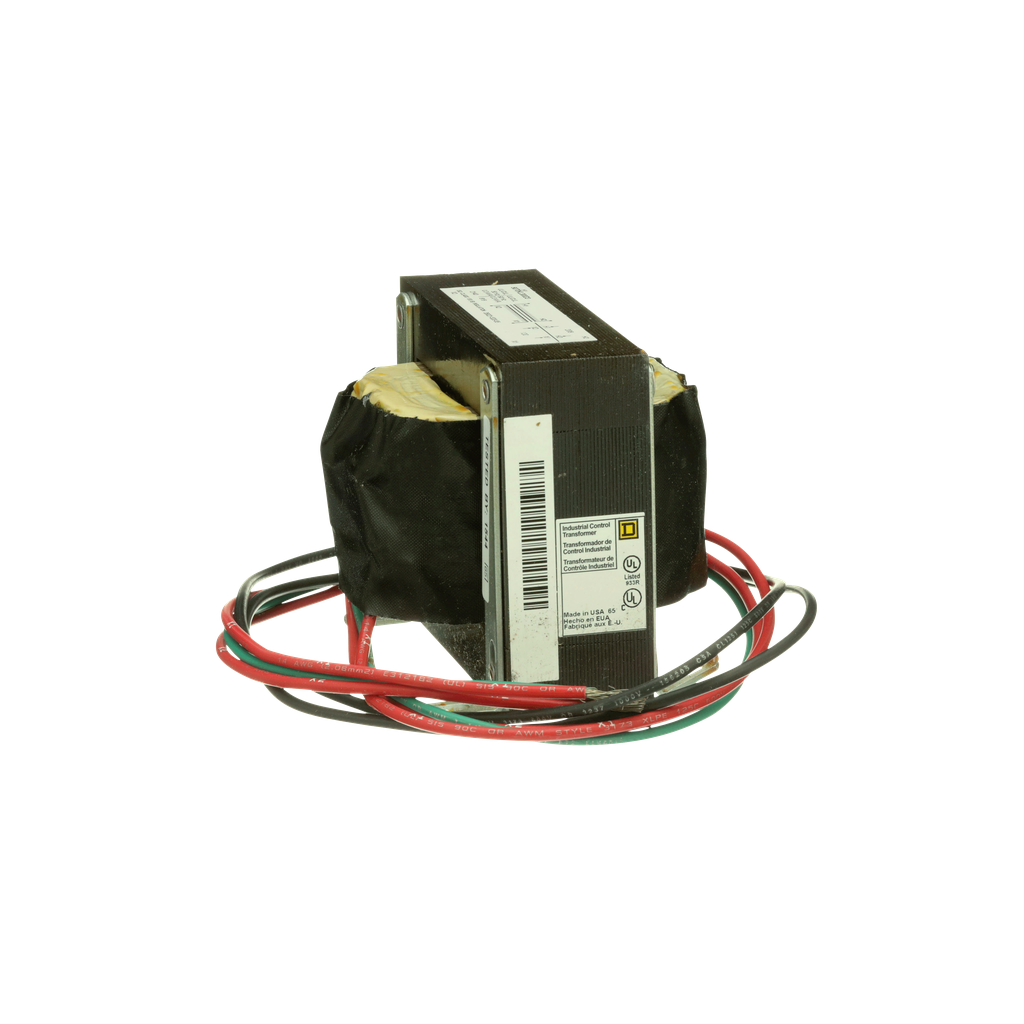

The Square D™ by Schneider Electric Type KL Industrial Control Transformer is a single phase 300VA transformer designed for 208VAC primary with a 120VAC secondary. This transformer comes with 24in leads. It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | KL |
|---|---|
| Product Or Component Type | Industrial Control Transformer |
| Warranty | 18 months |
| Primary Voltage | 208 V |
| Secondary Voltage | 120 V |
| Temperature Rise | 80 °C |
| Connector Type | lead 610 m |
| Electrical Connection | screw clamp terminals |
| Phase | 1 phase |
| Rated Power In Va | 300 VA |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 130 °C |
