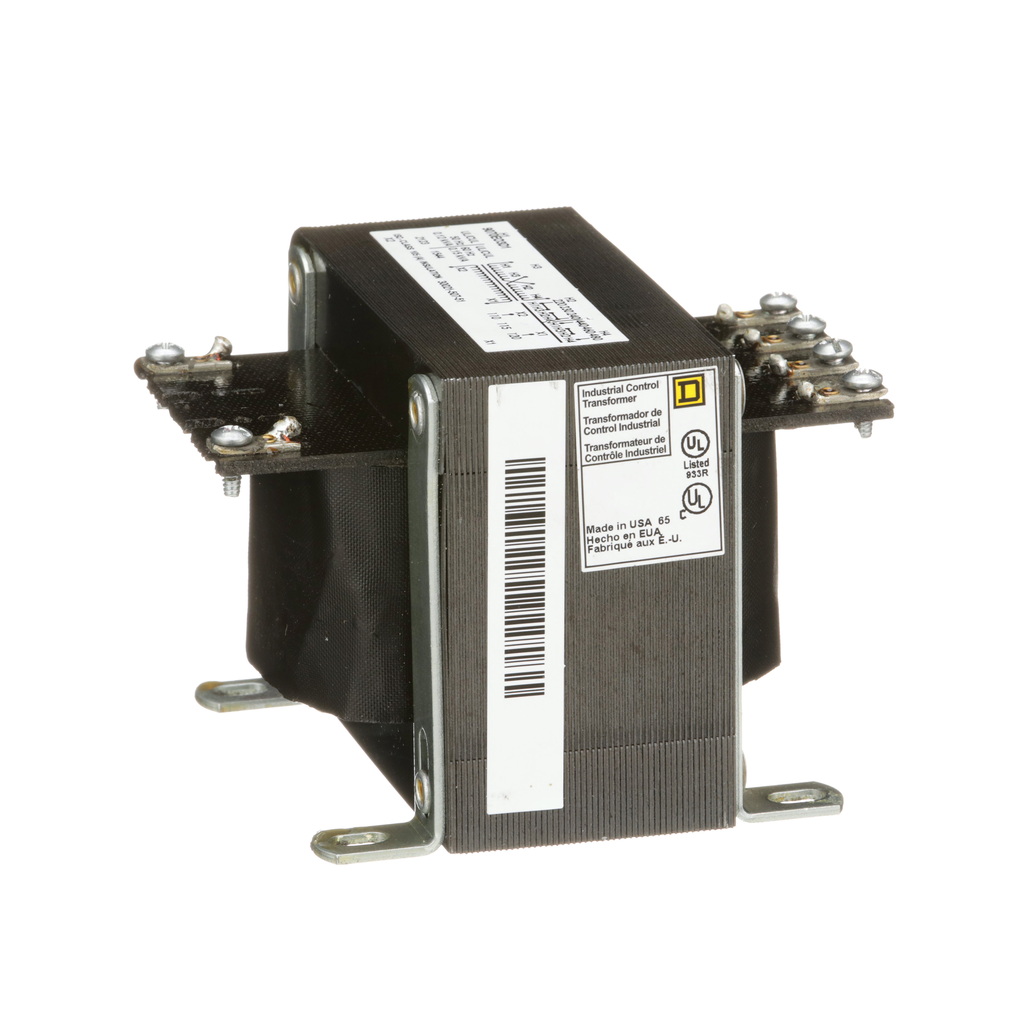

Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. This Industrial Control Transformer is 1 phase, with a rated voltage of 50 VA. This transformer has primary voltage of 230 x 460 V and secondary voltages of 110 V. This product has a temperature rise of 80 °C and a insulated temperautre of 130 °C. This product colmplys to UL listed, CSA & CE standards. This product comes with screw clamp terminals connections.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | EO |
---|---|
Product Or Component Type | Industrial Control Transformer |
Warranty | 18 months |
Primary Voltage |
|
Secondary Voltage |
|
Temperature Rise | 80 °C |
Electrical Connection | screw clamp terminals |
Phase | 1 phase |
Rated Power In Va | 150 VA |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308008EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
Insulation Temperature | 130 °C |
