9066RA1
External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12

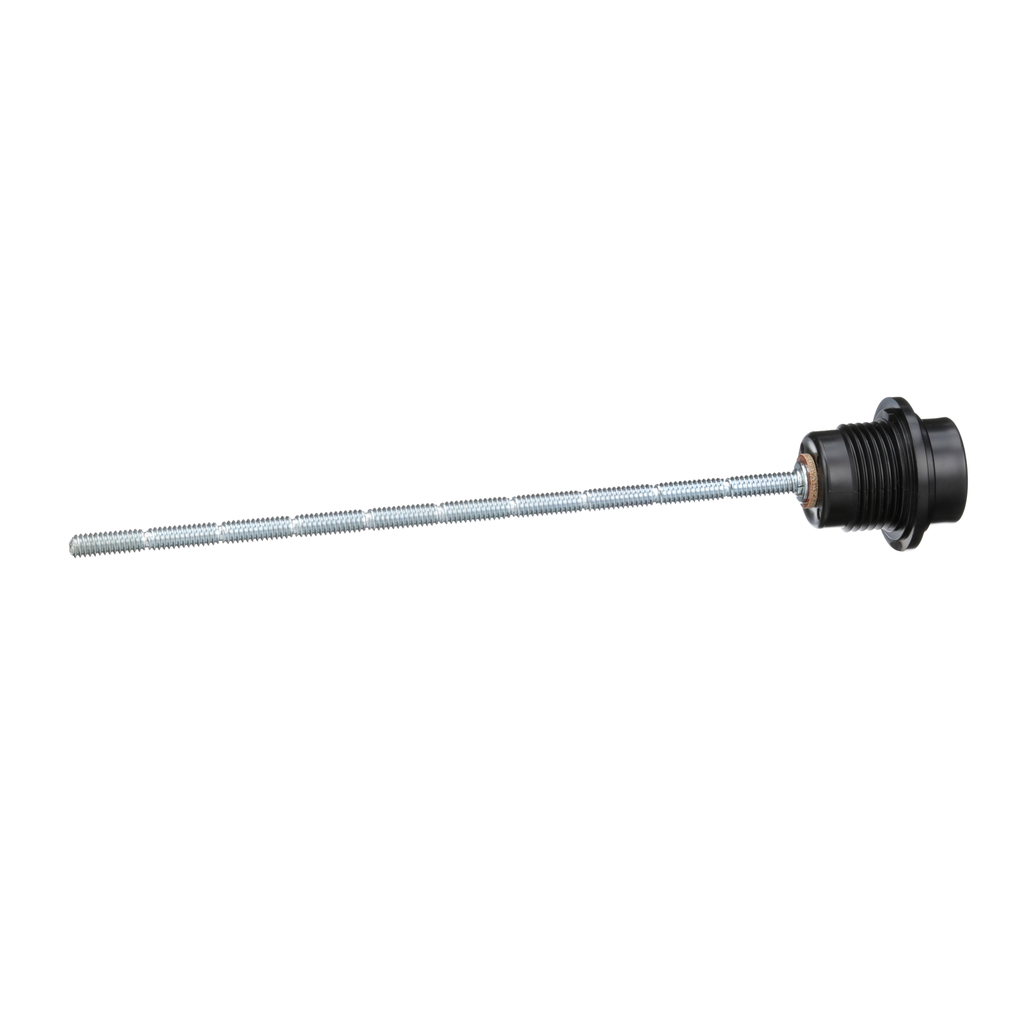

External reset mechanism allows the reset of the Type S overload relay without open the enclosure. The grey push button operator is mounted into the cover of the NEMA 1 or 12 enclosure. The push button is marked RESET. The kit contains one threaded reset rod that is grooved at intervals of 0.75 inches. The grooves allows the 9 inch long rod to be cut to the approximate length required without damaging the threads. Final adjustment is easily made after installation by rotating a plunger and tightening the lock not.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | reset mechanism kit |
|---|---|
| Range Of Product | type S |
| Warranty | 18 months |
| Mounting Support | enclosure door |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
