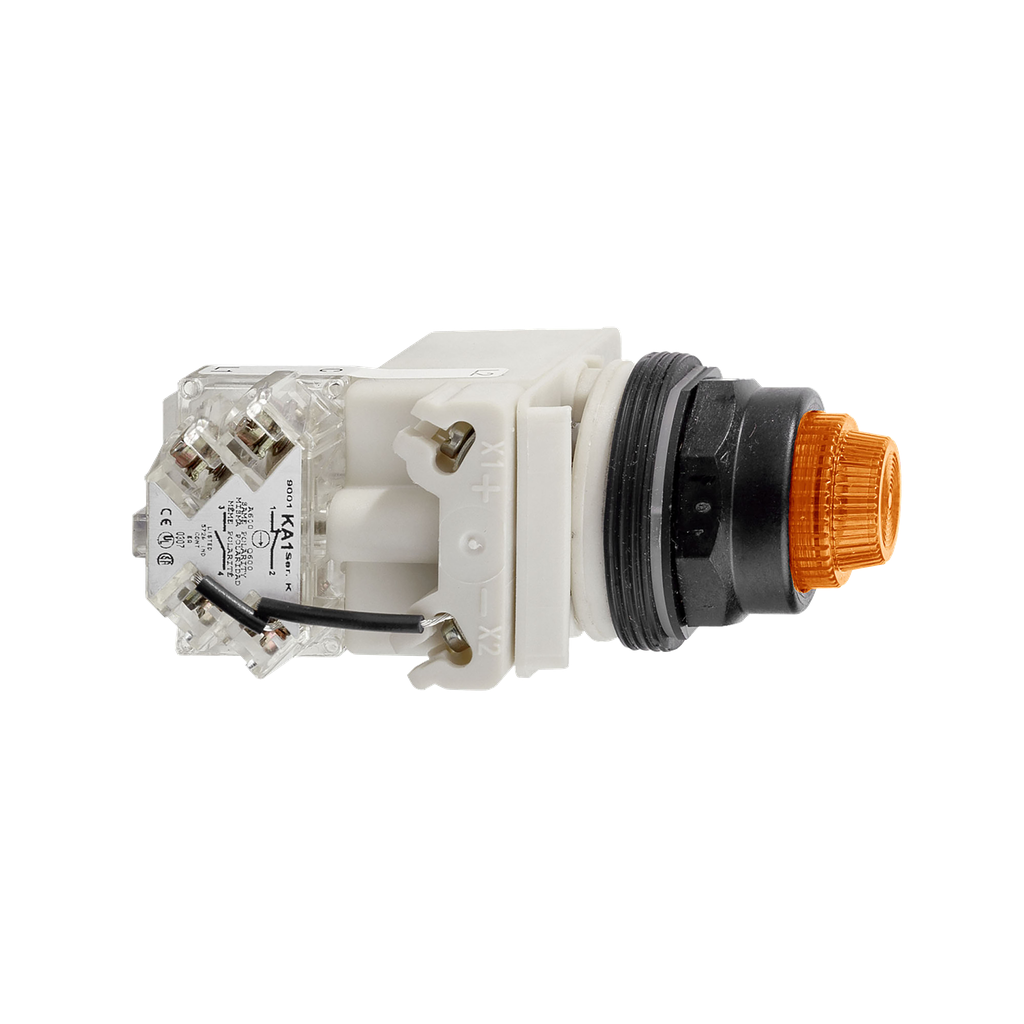

Push-to-test pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel lens, amber, 30mm, LED yellow, 120V
This Harmony 9001SK, push-to-test illuminated amber pilot light with integral LED and plastic fresnel is supplied with 110 V AC/DC. It has a double insulated plastic bezel. This illuminated amber push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Type Of Operator | spring return |
| Product Or Component Type | push-to-test pilot light |
| Operator Profile | amber projecting, unmarked |
| Device Short Name | 9001SK |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 120 V |
| [Us] Rated Supply Voltage | 120 V AC/DC |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Lens Material | polycarbonate |
| Contacts Material | silver alloy contacts |
| Light Source | LED |
| Light Block Supply | direct |
| Positive Opening | without |
| Mounting Diameter | 30 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Rated Breaking Capacity |
|
| Shape Of Signaling Unit Head | octagonal |
| Cap/Operator Or Lens Colour | amber |
| Net Weight | 0.195 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Size | 30 mm |
| Device Presentation | complete product |
| Lens Type | fresnel |
| [Icm] Rated Short-Circuit Making Capacity |
|
| Contacts Type And Composition | 1 C/O |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Bezel Material | plastic |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Light Source Colour | yellow |
| Mechanical Durability | 5000000 cycles |
| Operating Position | any position |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Shape Of Screw Head | cross slotted |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121113EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI121109EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
