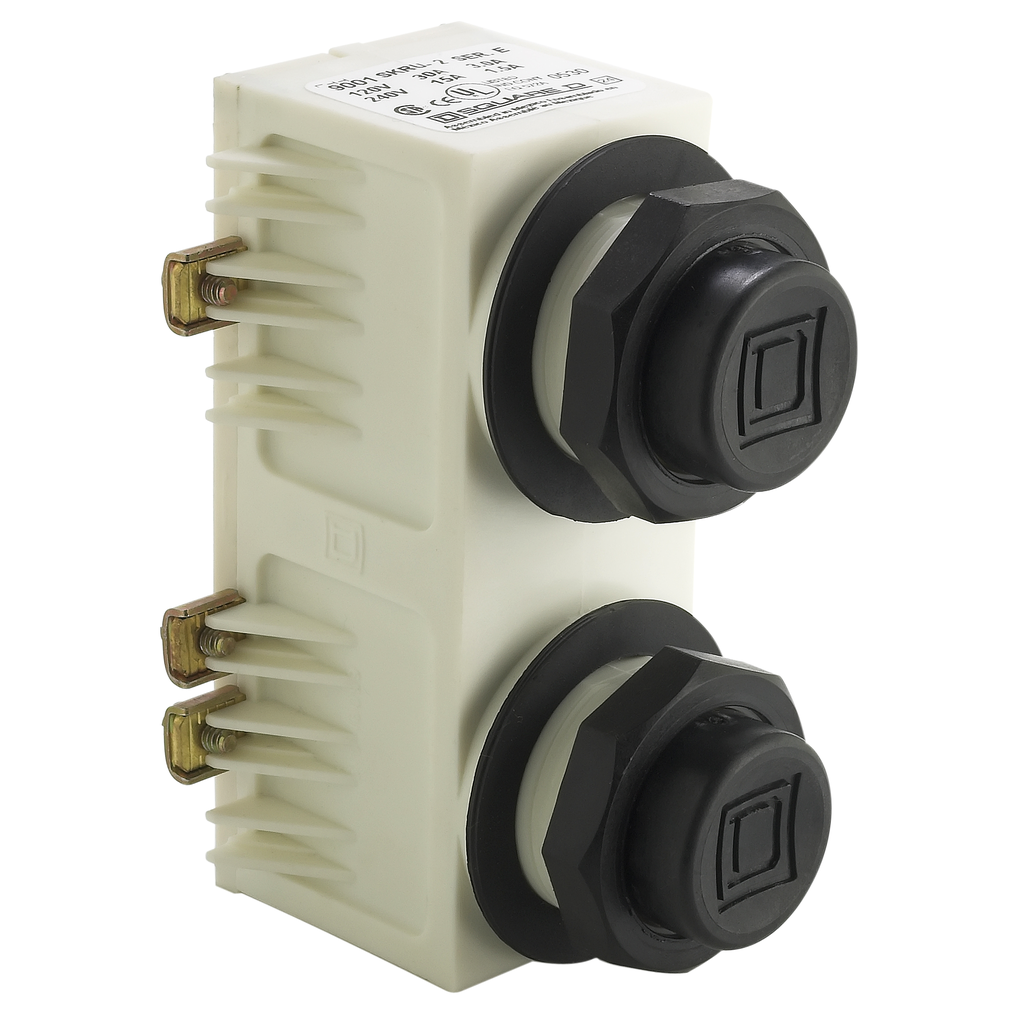

9001SKRU5
Push button, Harmony 9001SK, 5 speed, momentary interlocked, plastic, 600V AC, 10A, 30mm
This push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | push-button |
| Device Short Name | 9001SK |
| Warranty | 18 months |
| Bezel Material | plastic |
| Contact Operation | standard |
| Mechanical Durability | 5000000 cycles |
| Mounting Diameter | 30 mm |
| Device Presentation | basic element |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1305046EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1305046EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Standards |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Ip Degree Of Protection | IP66 |
