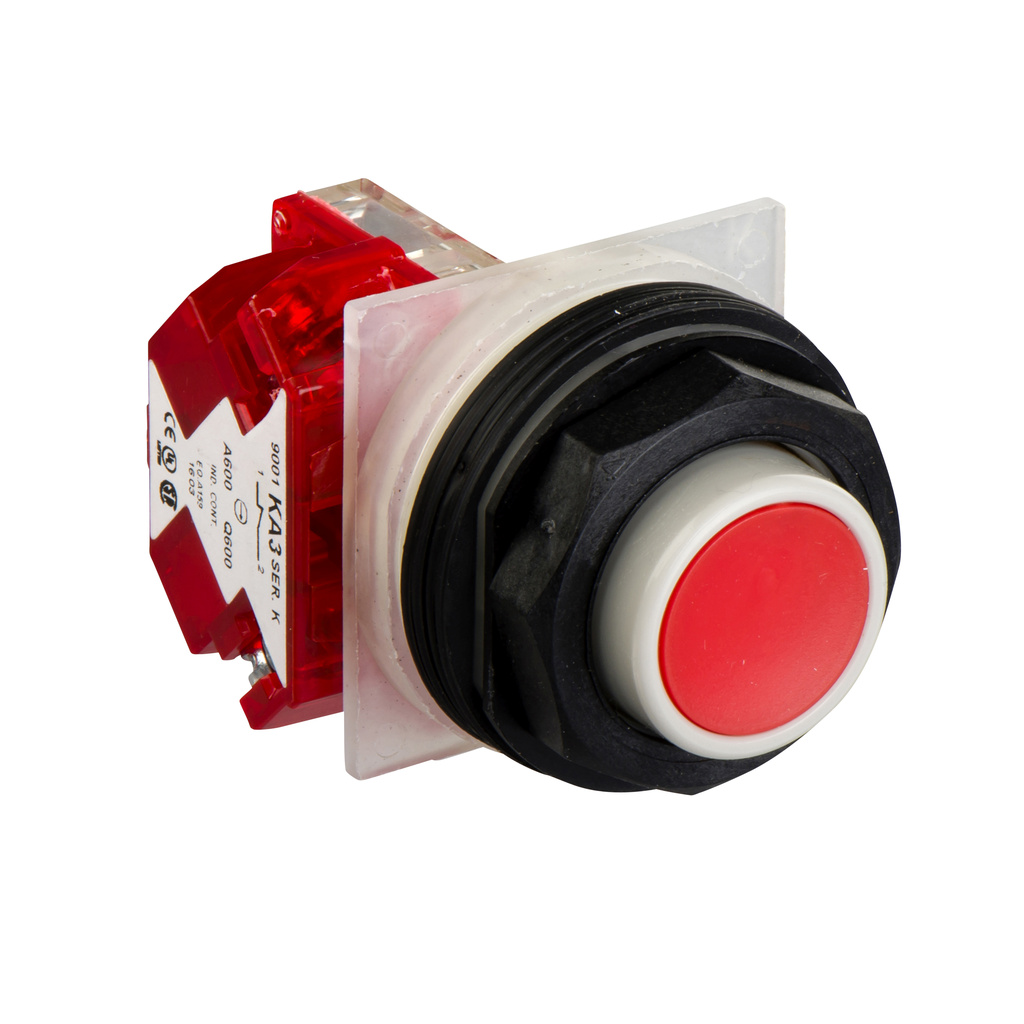

Push-button, Harmony 9001SK, plastic, projecting, red, 30mm, spring return, 1 NC
This Harmony 9001SK, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | without guard |
|---|---|
| Range Of Product | Harmony 9001SK |
| Operator Profile | red projecting, unmarked |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Device Short Name | 9001SK |
| Warranty | 18 months |
| [Icm] Rated Short-Circuit Making Capacity |
|
| Contacts Type And Composition | 1 NC |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Bezel Material | plastic |
| [Ie] Rated Operational Current |
|
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Contact Operation | standard |
| Contacts Material | silver alloy contacts |
| Mechanical Durability | 5000000 cycles |
| Positive Opening | with IEC 60947-5-2 |
| Mounting Diameter | 30 mm |
| Operator Profile | projecting |
| Type Of Operator | spring return |
| Operating Position | any position |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Rated Breaking Capacity |
|
| Shape Of Signaling Unit Head | octagonal |
| Cap/Operator Or Lens Colour | red |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Shape Of Screw Head | cross slotted |
| Net Weight | 0.07 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Size | 30 mm |
| Device Presentation | complete product |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | EnvPEP120817EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
