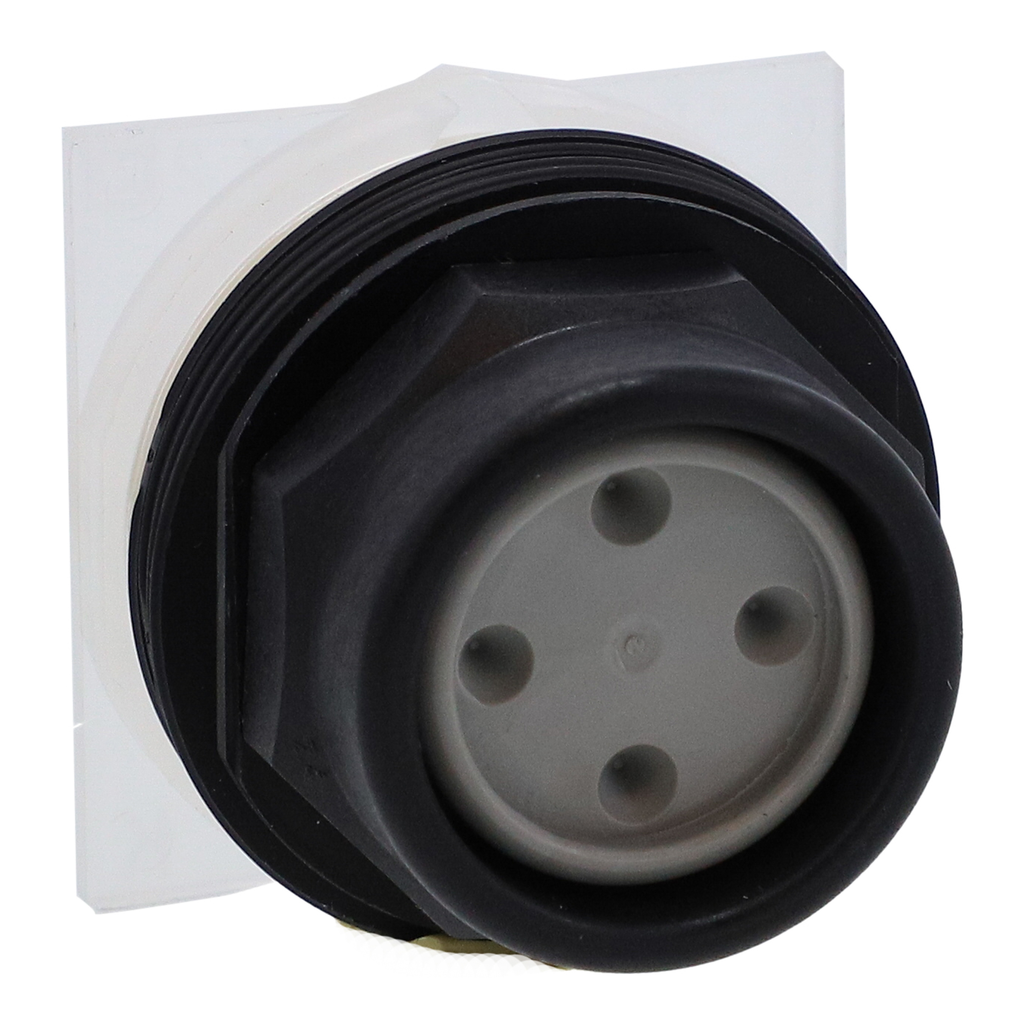

Push-button head, Harmony 9001SK, plastic, recessed, 7 colours choice, 30mm, spring return
This Harmony 9001SK, modular recessed push button with extended guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | plastic guard |
|---|---|
| Range Of Product | Harmony 9001SK |
| Operator Profile | recessed, unmarked |
| Product Or Component Type | head for push-button |
| Device Short Name | 9001SK |
| Warranty | 18 months |
| Contacts Type And Composition | without contact block |
| Bezel Material | plastic |
| Mounting Diameter | 30 mm |
| Type Of Operator | spring return |
| Operator Profile | recessed |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | 7 colours choice |
| Net Weight | 0.05 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | EnvPEP120817EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Documents
- Spec Sheet
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Catalog of Harmony 9001K and SK pushbuttons, switches and pilot lights Ø 30 - DIA5ED2130602EN (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Momentary, Non-Illuminated Mushroom Button Operators Installation Instructions - 30072-100-06_03 (pdf)
