9001SKR20

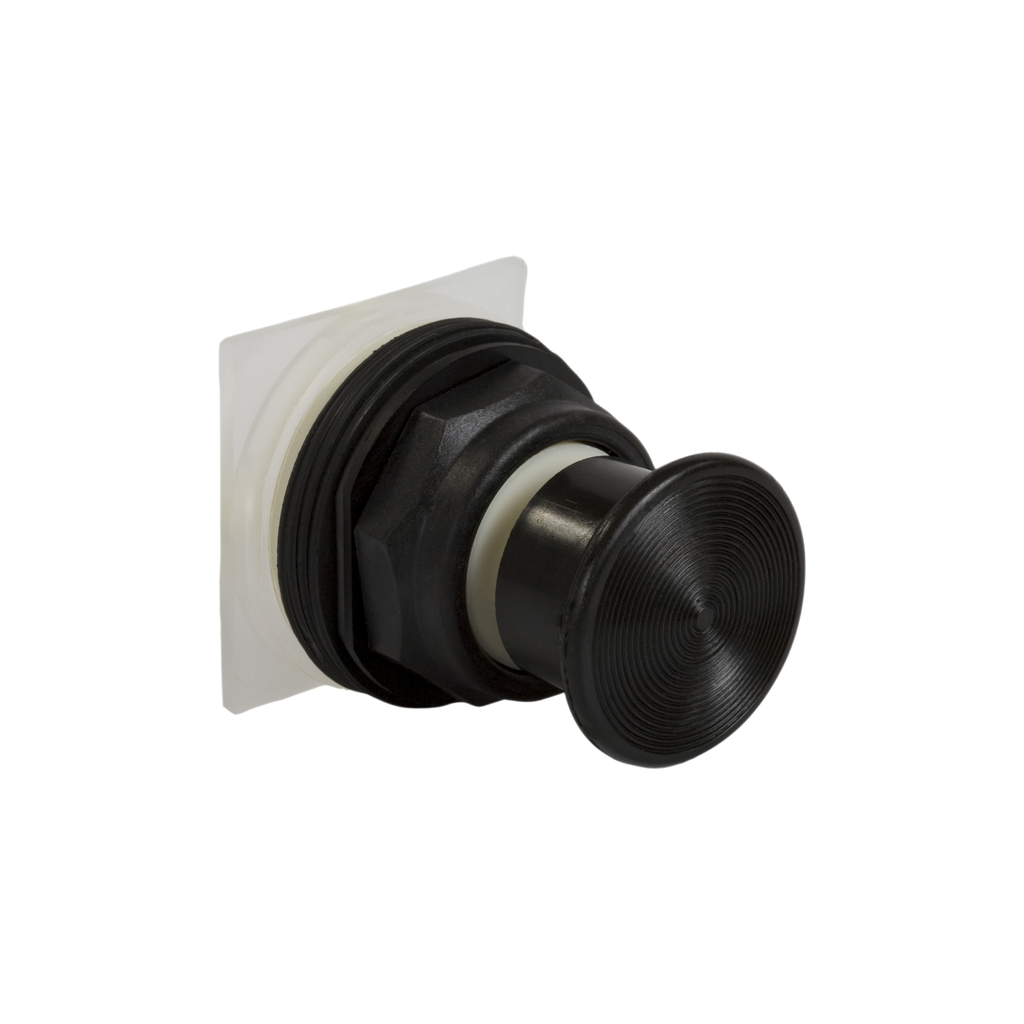

Push-button head, Harmony 9001SK, plastic, without mushroom, 30mm, spring return
Specifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | head for push-button |
| Device Short Name | 9001SK |
| Warranty | 18 months |
| Contacts Type And Composition | without contact block |
| Bezel Material | plastic |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | spring return |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | without mushroom |
| Size | 30 mm |
| Device Presentation | basic element |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | EnvPEP120817EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 |
