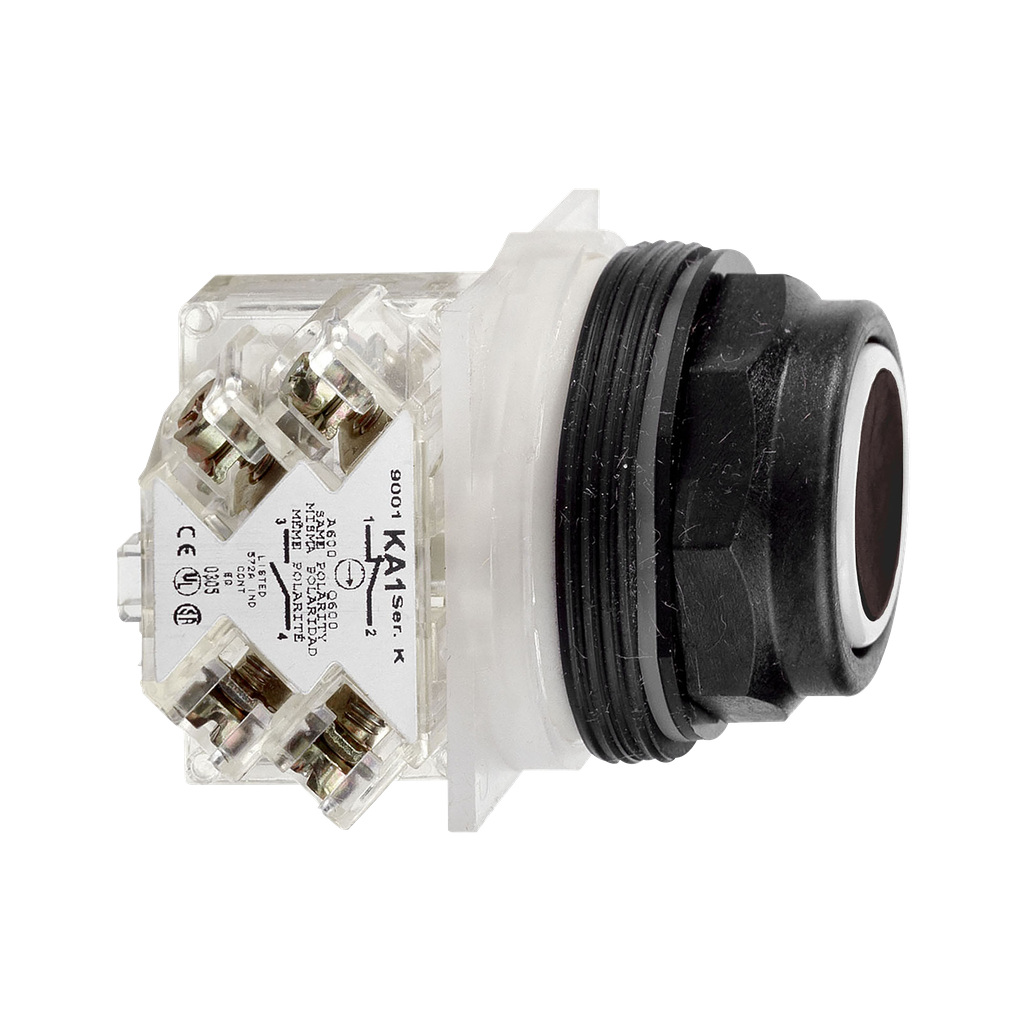

This Schneider Electric Harmony 9001SK modular flush black push-button with full guard has 2 positions, operates with spring return mechanism and has a double insulated plastic bezel. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. This flush push-button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | plastic guard |
---|---|
Range Of Product | Harmony 9001SK |
Type Of Operator | spring return |
Product Or Component Type | push-button |
Operator Profile | black flush, unmarked |
Device Short Name | 9001SK |
Warranty | 18 months |
Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
Contacts Material | silver alloy contacts |
Positive Opening | without |
Mounting Diameter | 30 mm |
Operator Profile | flush |
[Ith] Conventional Free Air Thermal Current | 10 A |
Rated Breaking Capacity |
|
Shape Of Signaling Unit Head | octagonal |
Cap/Operator Or Lens Colour | black |
Net Weight | 0.086 kg |
[Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
Size | 30 mm |
Device Presentation | complete product |
[Icm] Rated Short-Circuit Making Capacity |
|
Contacts Type And Composition | 1 C/O |
[Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
Bezel Material | plastic |
[Ie] Rated Operational Current |
|
Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
Contact Operation | standard |
Mechanical Durability | 5000000 cycles |
Type Of Operator | spring return |
Operating Position | any position |
Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
Shape Of Screw Head | cross slotted |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | EnvPEP120817EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance | 50 gn IEC 60068-2-27 |
Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP66 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 61140 |
Protective Treatment | TC |
