9001SKP38LYA31

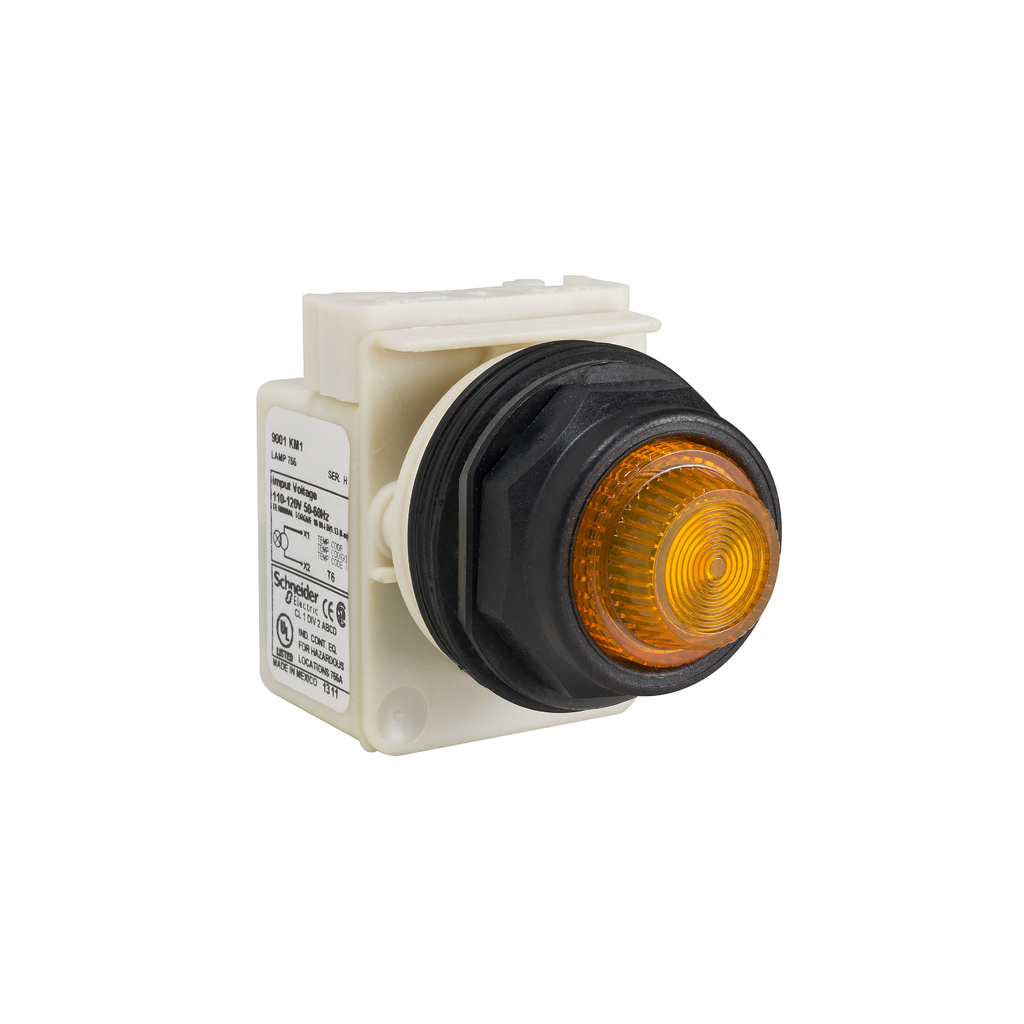

Pilot light, Harmony 9001SK, corrosion resistance enclosure, plastic, black, yellow LED, 120V, 30mm
This illuminated amber push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Light Source | Yellow LED |
|---|---|
| Enclosure Type |
|
| Mounting Diameter | 30 mm |
| Lens Type | fresnel plastic |
| Device Short Name | K |
| Warranty | 18 months |
| Bezel Material | black plastic |
| Shape |
|
| Light Block Supply | full voltage 120 V |
| Electrical Connection | screw clamp terminal |
| Operating Mode | normal |
| Cap/Operator Or Lens Colour | amber |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710019EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
