9001SKP38LY

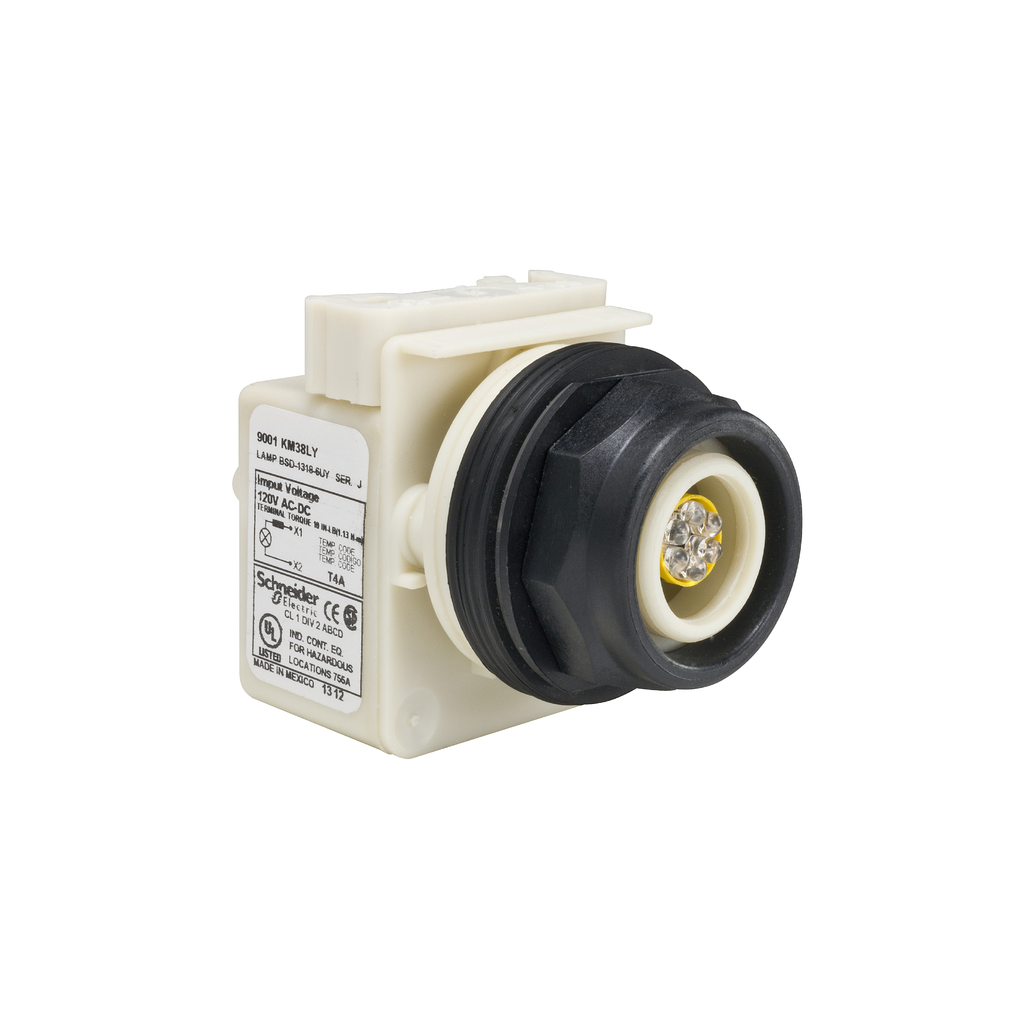

Pilot light head, Harmony 9001SK, plastic, without cap, 30mm, LED yellow, 120V
This illuminated pilot light with yellow integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Light Block Supply | direct 120 V |
| Product Or Component Type | head for pilot light |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 120 V |
| Light Source | Yellow LED |
| Bezel Material | plastic |
| Light Source Colour | yellow |
| Light Source | LED |
| Mounting Diameter | 30 mm |
| Operating Mode | normal |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Bulb Base | BA 9s |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710019EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 |
